High Precision Automatic Orbital Welding Machine With Water Cooled TIG Weld Head
Product Details
| Name: | Tube To Tube Sheet Welding Machine | Model: | TTS-30 |
|---|---|---|---|
| Tube OD: | 12-76mm | Welding Cuttent: | 315A |
| Type Of Welding: | TIG/GTAW | Input Power: | 380V |
| Tube Type: | Protruding Tube Or Flush Tube | Protective Gas: | Argon |
| Highlight |
Water Cooled TIG Weld Head,High Precision Orbital Welding,TTS-30 Automatic Orbital Welder |
||
Product Description
Heat exchanger tube angle fillet welding machine GTAW welding
Model: TTS-30
Application:
This welding head is a specially designed TIG welding head to make tube-to-tubesheet welds, which is suitable for carbon steel, stainless steel, mainly for protruding tube, flush tube and indented tube connection with or without wire feeding.
For welds requiring filler wire addition, an optional wire feeder can be mounted on the weld head. A standard wire spool, mounted directly on the Head, provides precise and positive wire feeding, not possible with floor-mounted feeders.
These weld Heads bring the productivity and repetitive precision of machine welding to the fabrication and repair of steam generators and heat exchangers.
This machine is widely applied in
- Tubular Heat Exchanger tube welding
- Boiler Tube to Tube Sheet Welding
- Protruding tube Welding
- Flush Tube Welding
Features
- Expandable pneumatic mandrel for easy positioning
- High precision with fast and accurate performance, suitable for small heat exchanger
- Auto AVC control with on and off function for manual adjustments
- Water cooled TIG weld head, easy to change or adjust Tungsten
- Integrated wire feed for recessed, protruded or flush tube ends
- Buttons on handle for easy operation
- Uses localized guide for self-centering of welds 19-76 mm OD
- Recommended power source OBT-315
Specification
| Model | TTS-30 |
| Material | Carbon steel, Stainless Steel |
| Type of Connection | Protruding tube or Flush Tube |
| Welding Process | TIG/GTAW |
| Tube OD(mm) | 19-76 |
| Welding Torch Angle | 0-30 |
| Tungsten OD(mm) | 1.6-2.4 |
| Welding Wire Dia(mm) | Φ0.8mm/Φ1.0 mm |
| Max wire feeding speed | 2200 mm/min |
| Swing Welding | Yes |
| Rotating | 360° free rotation with auto reset; all-position welding |
| Rotation speed(rpm) | 0.37-5.58 rpm |
| Protective Gas | Argon |
| Cooling | Water |
| Cable Length | 6m |
| Main Dimension(mm) | |
| Weight(kg) | 9 kg |
Power Source Specification
| Model | OBT-315 |
| Welding source | Panasonic YC-315TX |
| Power source type | Inverter |
| Welding Current | 5-315 A |
| Duty Cycle | 315 A / 60%, 250 A / 95%, 244 A / 100% |
| Input Voltage | AC380V ± 10 % 50/ 60 Hz |
| Total Power | 8.3 kVA |
| Cooling | Built-in water cooling system |
| Display | 7" touch screen |
| Programs Storage | 80 |
| Insulation Grade | F |
| Protection Class | IP21 |
| Weight | 120 kg |
| Dimension | 740 x 520 x 910 |
Detailed Pictures

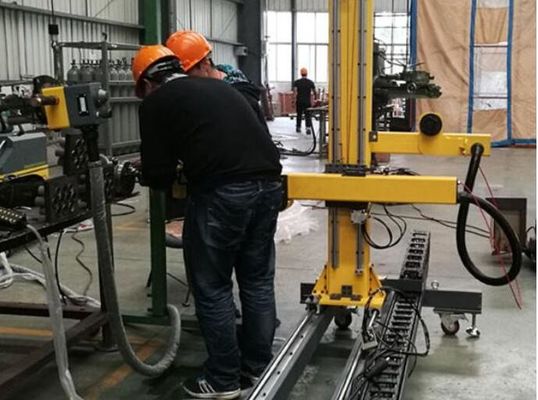

Protruding tube to Tubesheet Welding Machine
TTS-30 TIG welding Head of Tube to Tubesheet Welding Machine
OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine
Order information
| Order Code | K-31580-P |
| Packing | Flight case |
| Packing Size | 550 x 500 x 400 mm |
| Packing Weight | 15 kg + 130 kg (Welding Power Source OBT-315) |
| Delivery Time | 15 days after payment |
