| Place of Origin: | China |
|---|---|
| Brand Name: | TAYOR |
| Certification: | CE |
| Model Number: | CNCXG1250-V |
| Minimum Order Quantity: | 1Set |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set a Month |

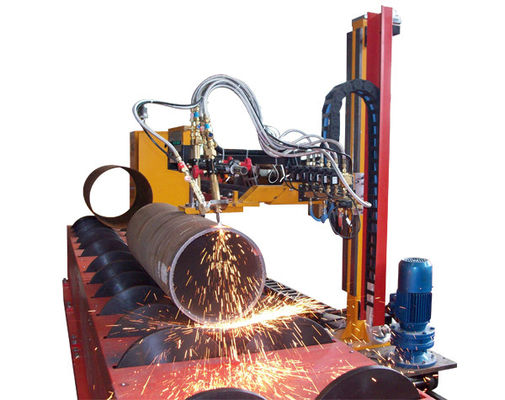

| Name: | CNC Pipe Profile Plasma Cutting Machine | Model: | CNCXG-1250V |
|---|---|---|---|
| Application: | CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting | Pipe OD: | 300-1200mm |
| Wall Thickness: | 1-32mm Carbon Steel (Plasma Cutting) | Pipe Length: | 12000mm |
| Controller: | 5 Axis Window Based CNC Controller | Plasma Power Source Model: | Hypertherm Maxpro200 |
| High Light: | cnc tube cutter,cnc pipe cutter |
||
Application:
This machine has been designed as automatic pipe profile plasma cutting machine to take user more efficient who facing complicated cut job of pipe truss building.
Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in
Truss Building
|
Pipe Diameter |
Φ300－Φ1250mm |
|
Torch Rail length (Pipe length) |
≤12000mm |
|
Cutting model |
Flame |
|
Plasma Cutting Thickness |
1-32mm |
|
Plasma model |
Hypertherm maxpro200 |
|
Flame cutting thickness |
6-40mm |
|
Photoelectric Height Sensor |
0.1 sec response speed |
|
Control System |
pipe profile cutting software |
|
Data input |
Torch Screen Data Input |
|
Max Loading capacity |
15000Kg |
|
Pipe Chuck |
3 Jaws concentric chuck |
|
Flame Max beveling angle |
±60° |
|
Plasma Max beveling angle |
±45° |
|
Flame cutting speed |
50mm/min -800mm/min |
|
Plasma cutting speed |
100mm/min-4000mm/min |
|
Moving Error |
≤0.2mm /1000mm |
|
Turning Angle Error |
≤1° per 180° |
|
Pipe Rotate speed |
0-10000mm/min |
Finish Job of CNC pipe profile cutting machien
5 axis CNC Pipe Profile Cutting Machine
| Order Code | CNCXG1000-V |
| Packing | Wooden Case and Pallet |
| Packing Size | 2200*5200*2000mm |
| Packing Weight | 5000Kg |
| Delivery Time | 30 Days after payment |
