Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source
  • Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source
  • Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source

Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source

Place of Origin China
Brand Name Hyzont
Certification CCC
Model Number TTS-30
Product Details
Name:
Tube To Tube Sheet Welding Machine
Model:
TTS-30
Tube OD:
12-76mm
Welding Cuttent:
315A
Type Of Welding:
TIG/GTAW
Input Power:
380V
Tube Type:
Protruding Tube Or Flush Tube
Protective Gas:
Argon
High Light:

tube welding machine

,

auto welding machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
30 Set a Month
Product Description

Tube to Tube-sheet Welding Head with GTAW DC Welding Power Source ​

Model: TTS-30

 Application:

       This welding head is a specially designed TIG welding head to making tube to tubesheet welds,which is suitable for carbon steel, stainless steel, mainly for protruded tube, flush tube and indented tube connection with or without wire feeding.

       For welds requiring filler wire addition, an optional wire feeder can be mounted on the weld head. A standard wire spool, mounted directly on the Head, provides precise and positive wire feeding, not possible with floor-mounted feeders.
       These weld Heads bring the productivity and repetitive precision of machine welding to the fabrication and repair of steam generators and heat exchangers.
       This machine is widely applied in

  • Tublar Heat Exchanger tube welding
  • Boiler Tube to Tube Sheet Welding
  • Protruding tube Welding
  • Flus Tube Welding

Features

  • Expandable pneumatic mandrel for easy positioning
  • High precision with fast and accurate performance, suitable for small heat exchanger
  • Auto AVC control with on and off function for manual adjustments
  • Water cooled TIG weld head, easy to change or adjust Tungsten
  • Integrated wire feed for recessed, protuded or flush tube ends
  • Buttons on handle for easy operation
  • Uses localized guide for self-centering of welds 19-76mm OD

Specification



Model TTS-30
Material Carbon steel, Stainless Steel
Type of Connection Protruding tube or Flush Tube
Welding Process TIG/GTAW
Tube OD(mm) 19-76
Welding Torch Angle 0-30
Tungsten OD(mm) 1.6-2.4
Welding Wire Dia(mm) Φ0.8mm/Φ1.0mm
Max wire feeding speed 2200mm/min
Swing Welding Yes
Rotating 360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm) 0.37-5.58 rpm
Protective Gas Argon
Cooling Water
Cable Length 6m
Main Dimension(mm)
Weight(kg) 9kg


 Power Source Specification

Model OBT-315
Welding source Panasonic YC-315TX
Power source type Inverter
Welding Current 5-315A
Duty Cycle 315A/60%;250A/95% ;244A 100 %
Input Voltage AC380V ± 10 % 50/ 60 Hz
Total Power 8.3KVA
Cooling Build-in Water Cooling System
Display 7" touch screen
Programs Storage 80
Insulation Grade F
Protection Class IP21
Weight 120KG
Dimension 740*520*910

Detailed Pictures

Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source 0

           Protruding tube to Tubesheet Welding Machine

Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source 1

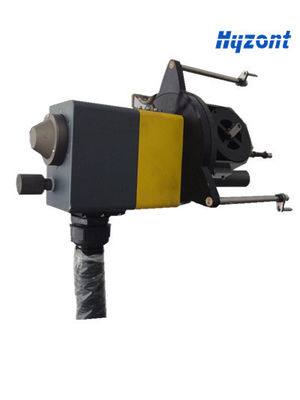

 TTS-30 TIG welding Head of  Tube to Tubesheet Welding Machine

Buttons On Handle Automatic Tube Welding Machine With GTAW DC Welding Power Source 2
 OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine





Hyzont TTP-30 Tube to tubesheet Welding Machine Youtube Video Link:

https://www.youtube.com/watch?v=Zy2-DhXAMAc
