Gantry Type CNC Plasma Cutter / Plasma CNC Machine 25mm Cutting Thickness
  • Gantry Type CNC Plasma Cutter / Plasma CNC Machine 25mm Cutting Thickness

Gantry Type CNC Plasma Cutter / Plasma CNC Machine 25mm Cutting Thickness

Place of Origin China
Brand Name Hyzont
Certification CCC
Model Number Atom Cut-8200
Product Details
Name:
Plasma Cutting Machine
Model:
Atom Cut-8200
Application:
CNC Plasma Cutting
Cutting Area:
2500*6000mm
Cutting Thickness:
1-30mm
Power Source:
Hypertherm Powermax105
High Light:

cnc router plasma combo

,

mini cnc plasma cutter

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiatable
Packaging Details
Wooden Case
Delivery Time
15 Days after payment
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
30 Sets a month
Product Description







Gantry Type CNC Plasma Cutting Table 25mm Plasma Cuttng Thickness ​



Model: AtomCut-1026





Cutting Area:3000*8000mm









Application:



       Hyzont gantry type plasma CNC cutter is a large size plasma cutting machine with a powerful high ampere Hypertherm plasma cutting system (Powermax105/MAXPRO200). Suitable for middle size or large engineering and metal profile cutting businesses to effortlessly cut all kinds of metal plates from thin to thick (50mm) with complex patterns. Addition Oxy-Fuel cutting capacity is included for your convenience.

       It is widely used in the process of cutting metal plates in the machinery manufacturing industry, engineering industry and metal fabrication and can cut mild steel, stainless steel, aluminium, copper and many kinds of non-ferrous metal.



  • Metal Plate Flame Cut
  • Metal Plate Plasma Cut
  • Steel Sheet Fabricaiting
  • Press Vessel Building
  • Offshore Plateform Building
  • automobile maintenance





Features:



  • Entry Level Machien with good price
  • Easy to install and use
  • Flame and Plasma Two torch option
  • Woodencase packing easy to move
  • Hypertherm Plasma Power source good cutting surface
  • CNC  controller high precision and fast cutting speed
  • Japan motor and rack
  • Detachable Cutting Table





Specification



Order Code KL-2560 KL-3080
Model ATOMCUT-8200 ATOMCUT-1026
Plasma Torch 1 set 1set
Flame Torch 1 set 1set
Cutting Area 2500*6000mm/8’*20’ 3000*8000mm / 10’*26’
Cutting Thickness 1-30mm 1-30mm
Stepper Motors SHINANO-JAPAN SHINANO-JAPAN
Max Speed 6000mm/min 6000mm/min
Liner Guide LGD12B- LF TAIWAN LGD12B- LF TAIWAN
Controller SH-2012AH-StarFire-China SH-2012AH-StarFire-China
Torch Height Control HAVC/plasma arc voltage sensor HAVC/plasma arc voltage sensor
Accuracy ±0.5mm ±0.5mm
Input Power AC 380/220V±10%/50Hz AC 380/220V±10%/50Hz
Table Structure Detachable Cutting Table Detachable Cutting Table









Hypertherm Plasma System Option



      To utilize the full power of the enlarged working area, we incorporate a powerful plasma cutting system from Hypertherm with our gantry CNC plasma cutting machine .

      The Powermax105 is the strongest plasma in the Hypertherm Powermax series. It provides a 105A output current with thickness cutting capacity .

      The MAXPRO200 plasma cutting system achieves impressive cut speeds, consistent cut quality and exceptional consumable life with air or oxygen plasma gas. Optimized cutting parameters are automatically set and controlled in one step for easy operation. Engineered for heavy-duty, high capacity mechanized cutting and gouging, the MAXPRO200 delivers reliable performance across a wide range of industrial applications.



Detailed Pictures

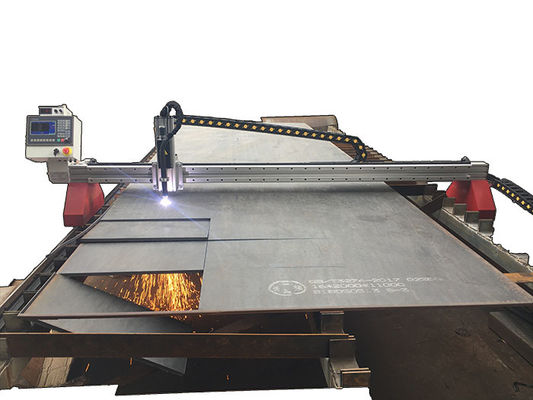

Gantry Type CNC Plasma Cutter / Plasma CNC Machine 25mm Cutting Thickness 0



              Atomcut1026 Gantry Type Plasma Cutting Machine
