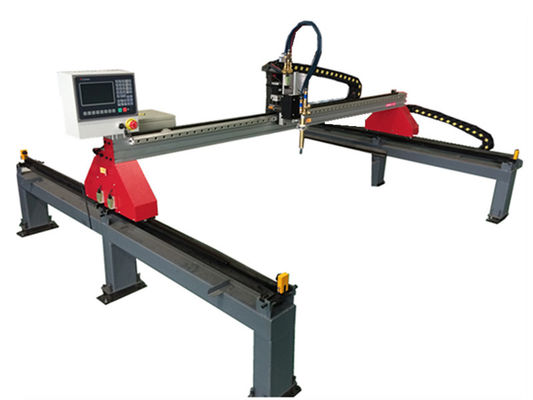

Entry Level CNC Plasma Cutting Table With 2.5m X 6m Cutting Area Easy To Install
Product Details
| Name: | Plasma Cutting Machine | Model: | Atom Cut-8200 |
|---|---|---|---|
| Application: | CNC Plasma Cutting | Cutting Area: | 2500*6000mm |
| Cutting Thickness: | 1-30mm | Power Source: | 105 |
| Highlight |
2.5m x 6m Cutting Area,Entry Level CNC Plasma Table,Easy Installation Plasma Cutter |
||
Product Description
CNC Plasma Cutting Machine entry Level Gantry Type Plasma Cutting Machine 2.5 m x 6 m cutting area
Model: AtomCut-8200
Cutting Area: 2500 x 6000 mm
Applications:
Features:
Specification
| Order Code | KL-2560 | KL-3080 |
| Model | ATOMCUT-8200 | ATOMCUT-1026 |
| Plasma Torch | 1 set | 1 set |
| Flame Torch | 1 set | 1 set |
| Cutting Area | 2500 x 6000 mm/8’*20’ | 3000 x 8000 mm /10’*26’ |
| Cutting Thickness | 1-30 mm | 1-30 mm |
| Stepper Motors | SHINANO-JAPAN | SHINANO-JAPAN |
| Max Speed | 6000 mm/min | 6000 mm/min |
| Liner Guide | LGD12B- LF TAIWAN | LGD12B- LF TAIWAN |
| Controller | SH-2012AH-StarFire-China | SH-2012AH-StarFire-China |
| Torch Height Control | HAVC/plasma arc voltage sensor | HAVC/plasma arc voltage sensor |
| Accuracy | ±0.5 mm | ±0.5 mm |
| Input Power | AC 380/220V±10%/50 Hz | AC 380/220V±10%/50 Hz |
| Table Structure | Detachable Cutting Table | Detachable Cutting Table |
Detailed Pictures
15 m long rail with Atomcut Plasma Cutting Table
Product Highlights
CNC Plasma Cutting Machine entry Level Gantry Type Plasma Cutting Machine 2.5 m x 6 m cutting area Model: AtomCut-8200 Cutting Area: 2500 x 6000 mm Applications: Metal Plate Flame Cut Metal Plate Plasma Cut Steel Sheet Fabricaiting Press Vessel Building Offshore Plateform Building automobile ...
