Collision Free Condenser Automatic Tube Welding Machine 200A TIG Power Source
Product Details
| Name: | Condenser U Tubing Tube Welding Machine | Model: | UFH-15/16 |
|---|---|---|---|
| Application: | Stainless Steel Condenser U Tube Auto Weld Fabricating | Weld Current: | Max. 200A |
| U Tube Material: | Stainless Steel | U Tube Thickness: | 1-3mm |
| Type Of Welding: | TIG/GWAT (No Wire Feeding) | Place Origin: | China |
| Highlight |
200A TIG Welding Power,UFH-15/16 Automatic Tube Welder,Collision-Free Condenser Tube Welding |
||
Product Description
Stainless Steel Condenser Automatic Tube Welding Machine with 200A TIG Power Source and Orbital Welding Head
This specially designed TIG welding head is used for automatic welding of stainless steel condenser U-tubes, using a process similar to orbital welding.
- Condenser U-Tube Welding
- Evaporator U-Tube Welding
- Heat Exchanger Fabrication
- Carbon Steel U-Tube Welding
- Stainless Steel U-Tube Welding
- Customized design suitable for all types of U-tubes
- Quick-install clamps for easy use
- Low labor cost with high-efficiency welding
- Collision-free U-tube welding with good contact in narrow spaces
- Heat-resistant components; compact, lightweight and durable design
- Water-circuit cooling design for prolonged operation
| Model | UFH-15 |
| Material | Carbon Steel, Stainless Steel, Titanium Alloy |
| Tube Fitting | Plugged U-Tube |
| Welding Process | TIG/GTAW (no wire feeding) |
| Tube OD (mm/inch) | 12.7-15.88 |
| Tube Wall Thickness (mm) | ≤3mm |
| Tungsten OD (mm) | 1.6 |
| Rotating | 360-degree free rotation with auto reset; all-position welding |
| Rotation Speed (rpm) | 0.3~6 |
| Protective Gas | Argon |
| Cooling | Water |
| Cooling Flow (ml/min) | 1000ml/min |
| Cable Length | 6m |
| Main Dimension (mm) | |
| Weight (kg) | 1kg |
| Dimension (mm) | 377*38*100 |
| Model | MWA-200A |
| Welding Power Source | EWM (Germany) |
| Welding Current | 200A |
| Power Source Type | Inverter |
| Duty Cycle | 200A/25%, 120A/100% |
| Input Voltage | AC220V ±10% 50/60Hz |
| Power | 6.3KVA |
| Cooling | Built-in Water Cooling |
| Display | 7" Touch Screen |
| Program Storage | 32 |
| Printer | Built-in Printer |
| Insulation Grade | H |
| Protection Class | IP21 |
| Weight | 18KG |
| Dimension | 590*300*325 |
| Control Function | Argon Gas Control Continuous and Pulse Current Control Welding Head Rotation Control Wire Feeding Control |
Detailed Pictures

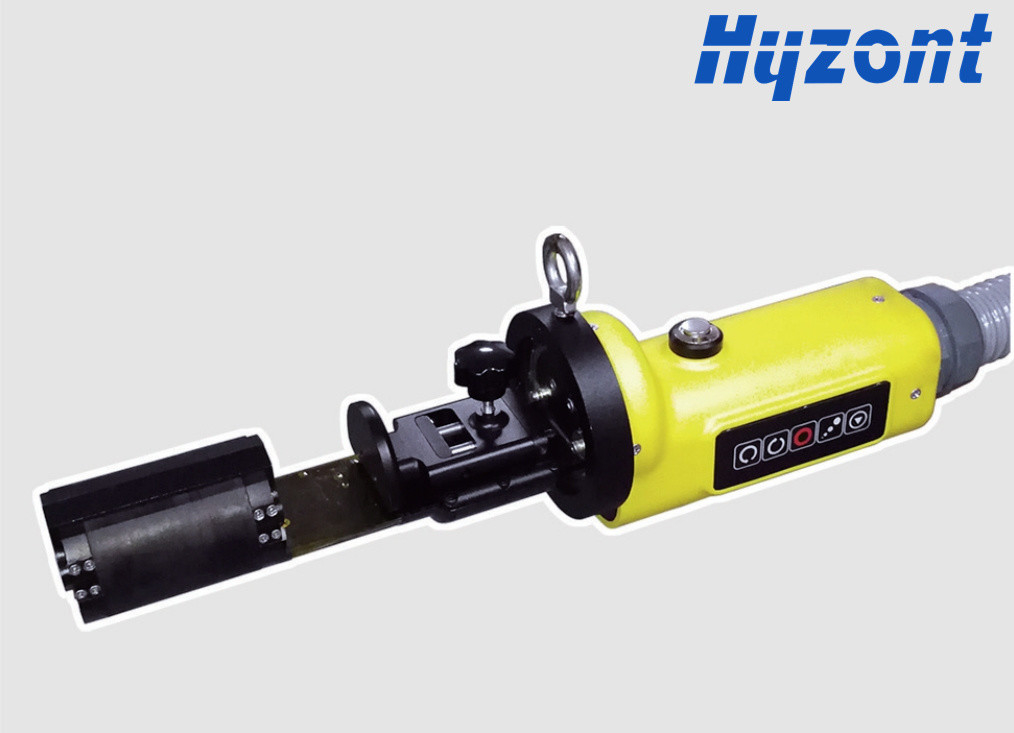

Condenser U-Tube Welding Machine Head, Well Packed in a Flight Case
