Multi Process Lincoln Electric Welders / MAG Lincoln Inverter Mig Welder

Multi-process Weldnig power source Lincoln Welding Machine MMA/ MAG /MIG /TIG /Flux-Cored Welding​

Applications

Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, Flux-Cored

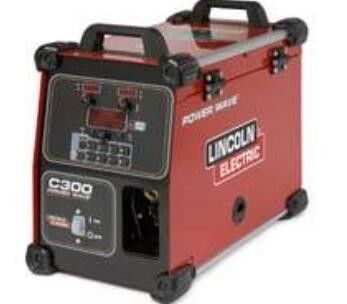

The Power Wave ® C300 is an advanced compact multi-process power source with an integrated wire feeder. It’s ideal for welding on a wide variety of materials, including aluminum, stainless, and nickel materials – where arc performance is critical.

Features

•  PowerConnect ™ Technology (Patent-Pending) - Automaticallyadjusts to input power from 200-600V,50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
• Tribrid ™ Power Module - Exceptional welding performance with high power factor and efficiency. CheckPoint ™ and Production Monitoring ™ 2.2 – Use your server or our cloud-based server to view or
• analyze your welding data on almost any device – desktop, laptop, iPhone ® or iPad ®, Blackberry ® and others. Track equipment usage, store weld data, configure fault limits and more.
• Compact and Durable Case - IP23 rated to withstand harsh environments.
• Integrated TIG Torch and Spool Gun Solenoid - Makes for fast changeovers to TIG welding or spool gun operation.

Input Voltage
3 Ph 50/60: 208/220-230/380-415/460/575
1 Ph 50/60: 208/220-230

Input Current @ Rated Output
3 Ph / 40% Duty Cycle: 30/28/16/14/11A
1 Ph / 40% Duty Cycle: 53/48/29

Output Range
5 - 300 amps

Wire Feed Speed Range
50 - 700 ipm

Rated Output
300A/29V/40%
250A/27V/100%

Weight
100 lbs. (47.6 kg)

Dimensions
(H x W x D)
18.8 x 14 x 27.4 in.
(478 x 356 x 696 mm)
