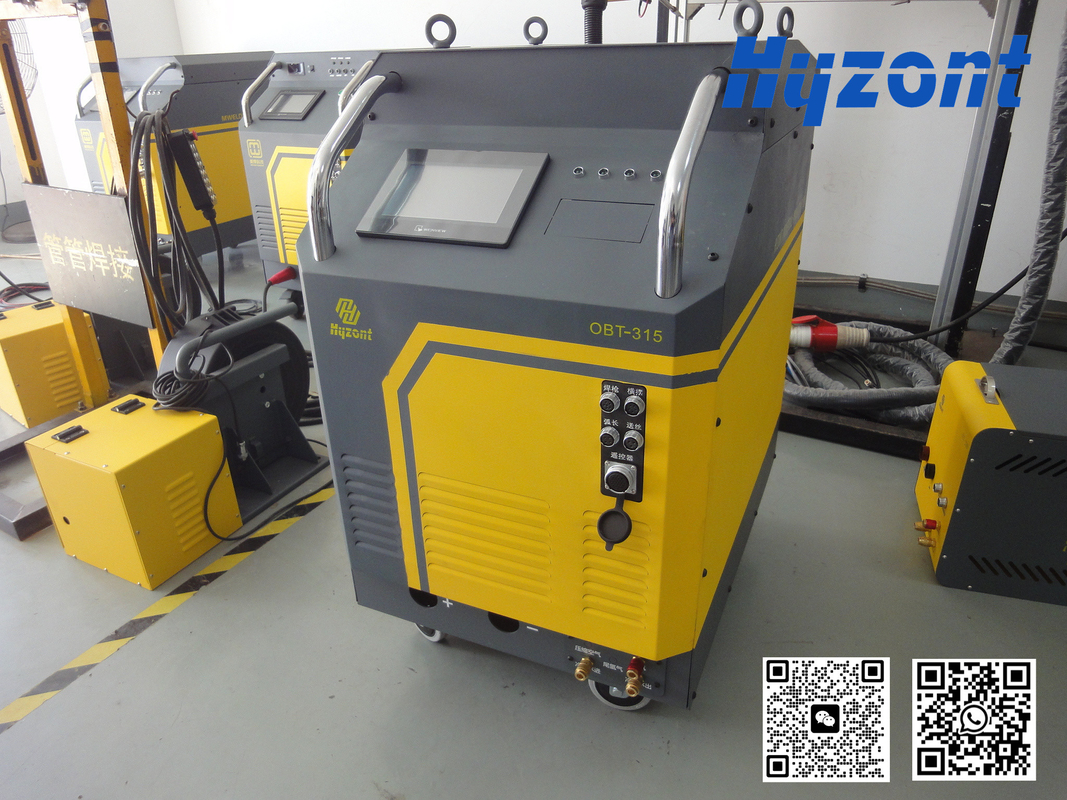

Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display
Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display
Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

Large Image :  Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: OBT-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Contact Now

Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

Description
Name: Tube To Tube Sheet Welding Machine Model: OBT-315
Welding Cuttent: 315A Type Of Welding: TIG/GTAW
Input Power: 380V Protective Gas: Argon
Highlight:

Real Time Welding Monitoring

,

OBT-315 Touch Screen Control

,

Tubesheet Welding Display System

TIG Welding Power Source 315 A GTAW for Tube to Tubesheet Welding Machine

Application:

Multi-functional orbital welding power source, mostly used for tube-sheet welding. Suitable for all Hyzont orbital welding heads, it integrates all available power source functions on the market


Features

  • 80 program internal memory storages with external USB support for importing and exporting data

  • Adjustable parameter during welding process for some special welding requirements

  • Built-in various welding head parameters for accurate motion control

  • Touch screen control display for real-time data monitoring

  • Option to choose offline programming or offline printing

  • Excellent fault detection solution, error display, modular design for easy maintenance

  • Real-time welding parameter record during welding process

  • Solid metal case, optional to use movable trolley for convenient transport

  • Up to 20 levels for each program for accurate control according to welding requirement

  • Water cooling system to ensure longtime working

Power Source Specification

Model OBT-315
Welding source Panasonic YC-315TX
Power source type Inverter
Welding Current 5-315 A
Duty Cycle 315 A / 60%, 250 A / 95%, 244 A / 100%
Input Voltage AC380V ± 10 % 50/ 60 Hz
Total Power 8.3 kVA
Cooling Built-in water cooling system
Display 7" touch screen
Programs Storage 80
Insulation Grade F
Protection Class IP21
Weight 120 kg
Dimension 740 x 520 x 910

Detailed Pictures

Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

           Protruding tube to Tubesheet Welding Machine

Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

                               Application of OBT-315
 Real Time Monitoring Tube To Tubesheet Welding Machine Touch Screen Control Display

  OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine
