Lincoln Welding Machine MMA and TIG Welding V270-T/ V270-TP
DESIGNED AND ENGINEERED FOR DURABILITY & RELIABILITY

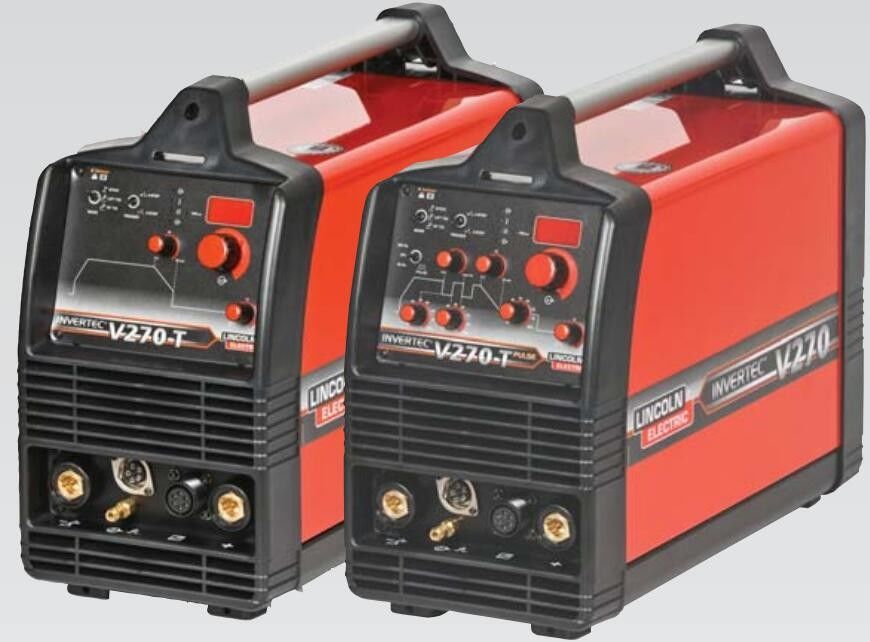

The Invertec ® V270-T and V270-TPULSE have been designed and manufactured using the latest
digital inverter technology allowing these machines to combine a rugged industrial construction with
excellent arc characteristics.The Invertec ® V270-T and V270-TPULSE are manufactured in a lightweight but robust outer casing, making them portable and ideal for operation, even in the most hazardous environments. The flexibility and generator compatibility of the V270-T and V270-TPULSE allows them to be utilised anywhere on sites and workshops.
The Invertec ® V270-T and V270-TPULSE are supplied as standard with all the features you would expect from a professional TIG welding machine including HF TIG ignition, Lift TIG ignition, 2 or 4 step, variable down slope and post flow control. The V270-T and V270-TPULSE, in addition, has a digital pre-set meter with a Hold Function and a built-in Variable Pulse.
The control panels of these machines have been designed to show the welding sequence, making them user friendly and easy to understand. A unique feature of the V270-TPULSE is the variable high frequency PULSE that allows the welder to adjust arc focus to suit the application. This will reduce heat input, resulting in a more controlled weld, less distortion and increased welding speed.
The V270-T and V270-TPULSE are air-cooled as standard. However by adding the Coolarc 20 water-cooler the units are changed into professional water-cooled TIG welders.
The Invertec ® V270-T and V270-TPULSE are made with a solid industrial construction, designed with the integrated features of a professional TIG welding machine capable of the toughest jobs.
Excellent arc characteristics,for a wide range of applications
Input voltage compensation Generator compatible, ideal for site use
HF and Lift TIG ignition meeting all requirements
Full function user-friendly control panel layout for easy setup of welding parameters
Air-cooled or Water-cooled with use of the Coolarc 20
HIGH speed PULSE to adjust the arc focus, reduce distortion and increase travel speed with the V270-T PULSE
Weighing only 14.5 Kg, the V270-T and T PULSE are both lightweight and portable
Pre-set digital meter with hold function for fully procedured work
Fan on demand built-in reduces power and the intake of dust and fumes
Recessed controls and connections designed to eliminate damage
Meet EN60974-1, ROHS and CE standards for safety and reliability
Built the Lincoln way ‘RUGGED & RELIABLE
Designation Item number
Cable kit 250A, 35mm 2 , 5m KIT-250A-35-5M
Gas pressure regulator Consult us
Remote output control - 15m K10095-1-15M
TIG torch 180A@35%, LT26 G, 4 or 8m K10513-26-x
TIG torch 320A@100%, LT18 W, 4 or 8m K10513-18-x
Water cooler Cool Arc TM 20 K1904-1
Undercarriage 2 wheels W0200002
