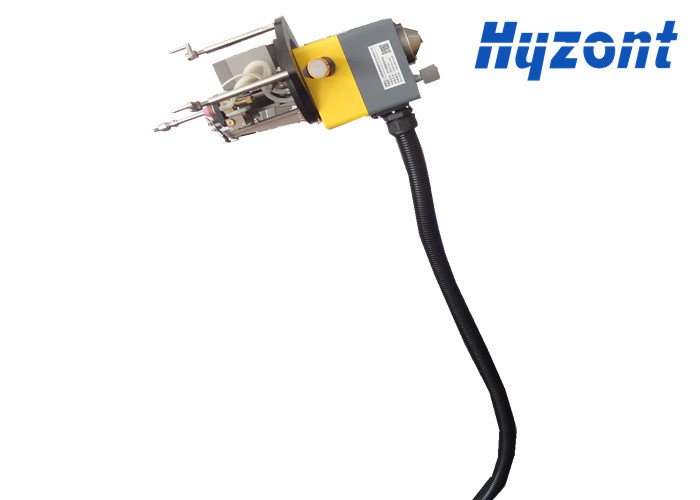

TIG Orbital Tube To Tubesheet Welding Machine Continuous Plus Current Control
Product Details
| Name: | Tube To Tube Sheet Welding Machine | Model: | TTS-30 |
|---|---|---|---|
| Tube OD: | 12-76 | Welding Cuttent: | 315A |
| Type Of Welding: | TIG/GTAW | Input Power: | 380V |
| Highlight |
TTS-30 Continuous Current Control,Precise Repeatable Orbital Tube Welds,Heat Exchanger Tubesheet Welding |
||
Product Description
Application:
Hyzont tube-to-tubesheet weld heads are designed to produce precise, repeatable tube-to-tubesheet welds. These orbital weld heads are optimized for fusion welding and wire-feed GTAW tube welding applications.
An integral head-mounted wire feeder is standard.
Different models are available to cover tube sizes from 10 mm to 80 mm OD. These easy-to-operate weld heads improve productivity by increasing duty cycle, reducing repair rates, and delivering consistent weld quality.
- Typical applications include:
- Tubular Heat Exchanger Tube Welding
- Boiler Tube-to-Tubesheet Welding
- Protruding Tube Welding
- Flush Tube Welding
- All-position welding with or without wire feeding
- Automatic AVC (arc voltage control) with on/off function for manual adjustment
- Rugged, reliable tube-to-tubesheet weld head suited for high-production applications
- One-button operation; quick to mount and dismount
- Continuous and pulse current control
| Model | TTS-30 |
| Material | Carbon Steel, Stainless Steel |
| Type of Connection | Protruding Tube or Flush Tube |
| Welding Process | TIG/GTAW |
| Tube OD (mm) | 19-76 |
| Welding Torch Angle | 0-30 |
| Tungsten OD (mm) | 1.6-2.4 |
| Welding Wire Dia (mm) | Φ0.8mm/Φ1.0mm |
| Max. Wire Feeding Speed | 2200mm/min |
| Swing Welding | Yes |
| Rotating | 360-degree free rotation with auto reset; all-position welding |
| Rotation Speed (rpm) | 0.37-5.58 rpm |
| Protective Gas | Argon |
| Cooling | Water |
| Cable Length | 6m |
| Main Dimension (mm) | |
| Weight (kg) | 9kg |

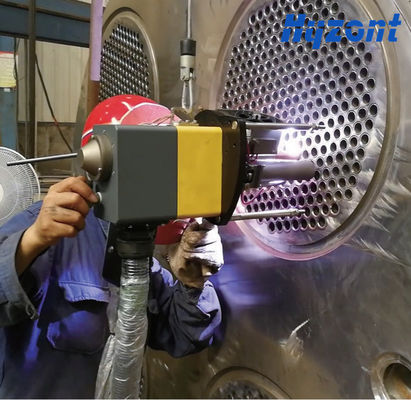

TTS-30 Tube-to-Tubesheet Welding Machine in Operation
