40m/Min running speed CNC laser cutting machine single table fiber laser cutting machine for metal
Product Details
| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | TP-6020 |
| Certification: | CE | Brand: | HYZONT |
| Highlight |
40m per Minute Running Speed,TP-6020 Single Table Laser,High Speed Metal Cutting |
||
Product Description
Product Description

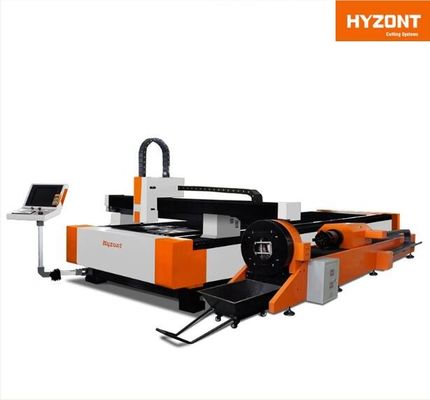

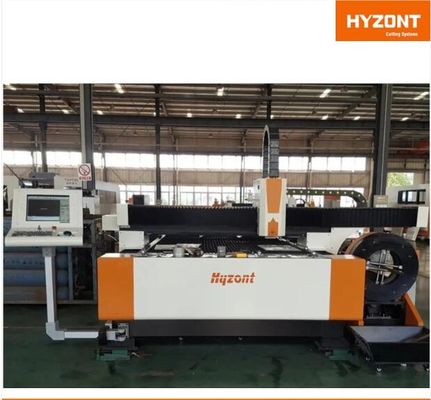

TP-6015 CNC Fiber Laser Plate & Tube Cutting Machine
In our TAYOR CNC Fiber Laser Products Chain, there are models TF E, TF EDGE for single table plate cutting; models TF EDGE+, TF PRO for tranferable tables plate cutting; model TF for plate & tube cutting; model TD for 3D cutting.
TP 6015 Fiber Laser Plate & Tube Cutting Machine is with plate cutting area 1500 x 6000 mm (1500 x 3000 mm cutting area for option), tube cutting size 30-200 mm, position speed 80 m/min, repeat position accuracy 0.025 mm.
TP-6020 Fiber Laser Laser & Tube Cutting Machine could be equiped with 1000 W-30000 W Fiber Laser, the cutting thickness could be 0.5-20 mm for MS, 0.5-10 mm SS, 0.5-10 mm Al.
Feature
1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material;
2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%);
3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine);
5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.

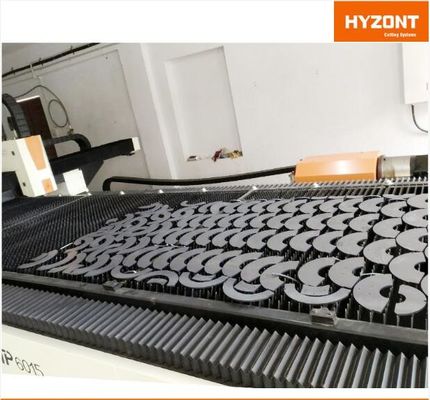

6. Fiber exerts its features better in thin metal sheet cutting. Such as 1 mm stainless steel, its cutting speed reach 12 m/min. While 2 mm stainless steel cutting speed readuce to 3.5 m/min. The thicker metal sheet, the lower of the machine efficiency.
SpecificationFor the machine detailed specification, please kindly check below table,
| No. | Item | Brand | Note |
| 1 | Fiber Laser Generator | IPG | 2000 W |
| 2 | Fiber Laser Cutting Head | Raytools | |
| 3 | Machine Body | HYZONT | |
| 4 | Beam | HYZONT | |
| 5 | Cutting Table | HYZONT | Single Table |
| 6 | Precision Gear Box | Taiwan APEX | |
| 7 | X Y Axis Rack & Pinion | Taiwan Kaihe, Sweden Linden | |
| 8 | Ball Screw | Taiwan Hiwin | |
| 9 | Guide | Taiwan Hiwin | |
| 10 | Gas System | Japan SMC | |
| 11 | Cooling Unit | Tongfei | |
| 12 | Electric Components | France Schneider, etc. | |
| 13 | CNC Controller (Including Software) | CypCut | |
| 14 | AC Servo Driver & Motor | Japan Yaskawa | |
| 15 | CAD/CAM Nesting Software | CypNest | |
| 16 | Electric Cabinet & Operation Table | HYZONT | |
| 17 | Dust Collection | China Brand | Including Extractor & Duct |
| 18 | Scrap Collection | HYZONT |
HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Sales Manager: Mr. Raymond
Mob: +86 15021164313 WhatsApp: +86 15021164313
Email: raymond@hyzont.com
