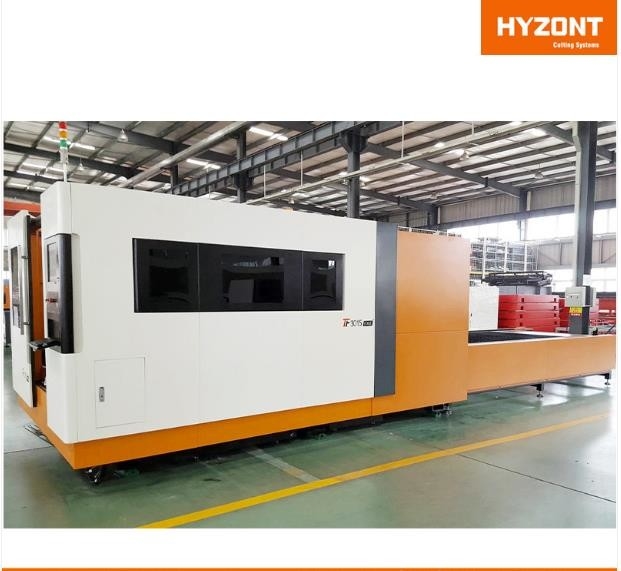

2000*6000mm Cnc Laser Cutting Machine 12m/Min Water Cooling
Product Details
| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | TF-3015G |
| Certification: | CE | Brand: | Hyzont |
| Highlight |
2000x6000mm Laser Table,12m per Minute Water Cooling,TF-3015G Fiber Cutter |
||
Product Description
1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material;
2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%);
3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine);
5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.
6. Fiber exerts its features better in thin metal sheet cutting. Such as 1 mm stainless steel, its cutting speed reach 12 m/min. While 2 mm stainless steel cutting speed readuce to 3.5 m/min. The thicker metal sheet, the lower of the machine efficiency.
| Model | TF-3015G |
| Working Area | 3000 mm x 1500 mm |
| Laser Power | 1000 W-1500 W-2000 W- 3000 W- 4000 W-6000 W |
| Laser Wavelength | 1060 nm-1080 nm |
| Cutting Speed | 0-60 m/min |
| Gross Power | 20 kW-30 kW |
| Cutting Thickness | 14 mm/18 mm/20 mm/24 mm |
| Positioning Accuracy | ±0.03 mm/m |
| Reposition Accuracy | ±0.02 mm/m |
| Max Velocity of Movement | 140 m/min |
| Cooling Mode | Water Cooling |
| Supply Power | 3 phase 380 V/50 Hz 20KVA-30KVA |
| Application Materials | Sheet Metal |
The laser cutting machine focuses the laser light emitted from the laser into a high-power density laser beam through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point, while the high-pressure gas coaxial with the beam blows away the molten or vaporized metal. As the relative position of the beam and the workpiece moves, the material will finally form a slit, so as to achieve the purpose of cutting. Laser cutting processing is to replace the traditional mechanical knife with an invisible beam. It has the characteristics of high precision, fast cutting, not limited to the cutting pattern, automatic typesetting, saving materials, smooth cutting, and low processing cost. It will be gradually improved or replaced.
