Large Diameter Round Pipe Plasma Profile Cutting Machine 3D Bevel Torch 6000Kg Loading
Product Details
| Machine Type: | 5-axis CNC Round Pipe Profile Plasma Cutting Machine | Model: | CNCXG1200-V |
|---|---|---|---|
| Pipe Diameter (OD): | 500-1050mm | Pipe Length: | 12000mm |
| Cutting Mode: | Plasma Cutting | Plasma Cutting Thickness: | 1-25mm (chamfer Cutting 22mm) |
| Plasma Power Source: | 12000W High Power Plasma Source | Plasma Cutting Torch: | 3D Plasma Profile Cutting Torch |
| Height Sensor: | Photoelectric Height Sensor, 0.1s Response | Control System: | Bus-type CNC Control System (industrial Ethernet Field Bus) |
| Operating System: | Industrial Control Operating System | Display: | 19 Inch Explosion-proof Touch Screen |
| Software: | English Version Control Software | Field Bus: | Industrial Ethernet Field Bus |
| Axis Number: | More Than 6 | I/O Modules: | Bus I/O Modules |
| Peripheral: | USB X4, RS232/485, Ethernet | Pipe Chuck: | Manual 3 Jaws Concentric Chuck With Auto Up/down |
| Max Loading Capacity: | 6000Kg | Pipe Rotate Speed: | 0-10000mm/min |
| Moving Error: | 0.2mm/1000mm | Net Weight: | 5000Kg |
| Servo Motor: | High-precision AC Servo | Gear Box: | Imported Precision Gear Box |
| Water Cooler: | Industrial Water Cooler | ||
| Highlight |
3D Plasma Profile Cutting Torch,3 Jaws Concentric Pipe Chuck,6000Kg Pipe Loading Capacity |
||
Product Description
Large Diameter CNC Round Pipe Plasma Profile Cutting Machine

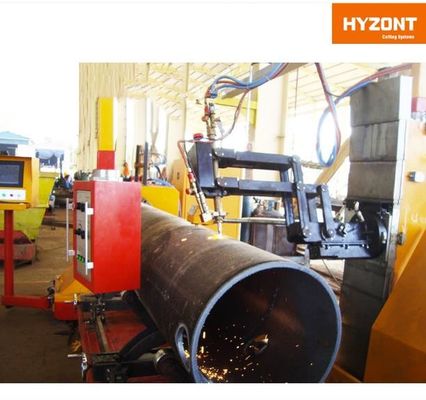

This round pipe profile plasma cutting machine is a 5-axis CNC system designed for cutting circular pipe in diameters from 500mm to 1050mm and lengths up to 12000mm. With a 12000W high power plasma source, a 3D plasma profile cutting torch and a photoelectric height sensor, it performs straight and bevel cutting, hole cutting, T-joint, multi-branch and elbow (shrimp joint) profiles on carbon steel, stainless steel and other metal pipes, cutting 1-25mm wall thickness.
Why Choose This Round Pipe Plasma Profile Cutting Machine
- 3D plasma profile cutting torch - performs pipe end cutting, hole cutting, T-joint, multi-branch and elbow (shrimp joint) profiles with vertical and horizontal beveling.
- 3 jaws concentric pipe chuck - manual 3-jaw concentric chuck with auto up/down function securely holds pipe from 500mm to 1050mm diameter.
- 6000Kg pipe loading capacity - heavy duty support bracket and structure handle large, heavy wall pipe for shop fabrication.
- Precision motion - moving error 0.2mm/1000mm with high-precision AC servo drive and imported gear box for accurate profile cuts.
Technical Specifications
| Parameter | Value |
|---|---|
| Machine type | 5-axis CNC round pipe profile plasma cutting machine |
| Pipe diameter (OD) | 500-1050mm |
| Pipe length (torch rail length) | 12000mm |
| Cutting mode | Plasma cutting |
| Plasma cutting thickness | 1-25mm (chamfer cutting 22mm) |
| Plasma power source | 12000W high power plasma source |
| Plasma cutting torch | 3D plasma profile cutting torch |
| Height sensor | Photoelectric height sensor, 0.1 sec response speed |
| Control system | Bus-type CNC control system (industrial Ethernet field bus) |
| Operating system | Industrial control operating system |
| Display | 19 inch widescreen with explosion-proof touch screen |
| Software | English version control software |
| Field bus mode | Industrial Ethernet field bus |
| Axis number | More than 6 |
| I/O | Bus I/O modules |
| Peripheral | USB x4 (USB3.0 x1), RS232/485 serial port, Ethernet |
| Pipe chuck | Manual 3 jaws concentric chuck with auto up and down function |
| Max loading capacity | 6000Kg |
| Pipe rotate speed | 0-10000mm/min |
| Moving error | 0.2mm / 1000mm |
| Net weight | 5000Kg |
Key Spare Parts
| Part | Specification |
|---|---|
| Chuck | 3 jaws chuck, 1 set |
| Pipe support bracket | Support bracket |
| Driving motor | High-precision AC servo motor |
| Driving control system | High-precision AC servo driver |
| Reduce gear box | Imported precision gear box |
| Torch height sensor | Plasma torch height sensor, 1 set |
| Plasma power source | 12000W, 1 set |
| Plasma cutting torch | 3D plasma profile cutting torch, 1 set |
| Water cooler | Industrial water cooler, 1 set |
Pipe Profile Cutting Capability

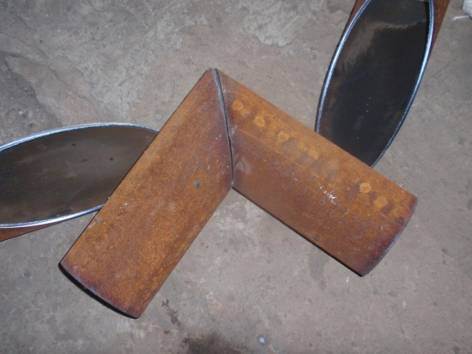

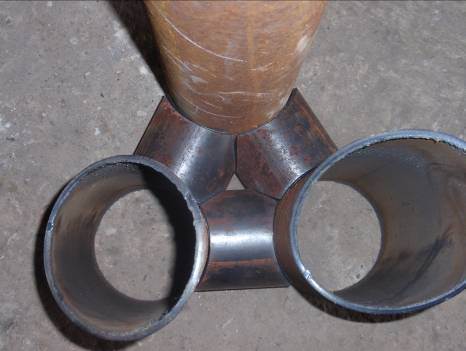

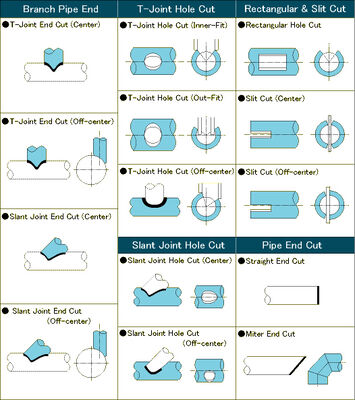

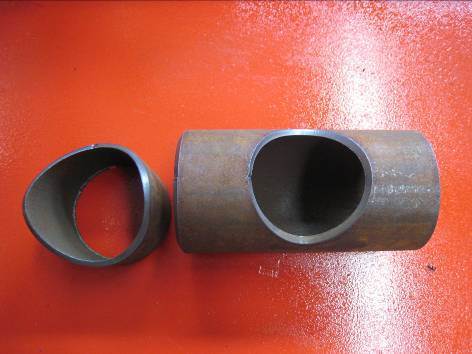

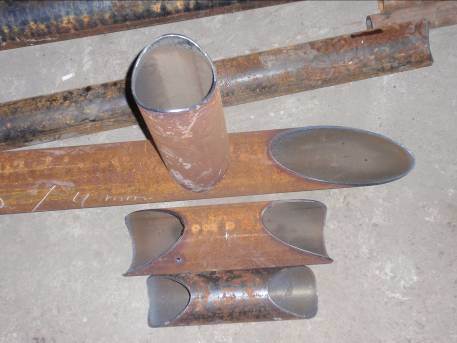

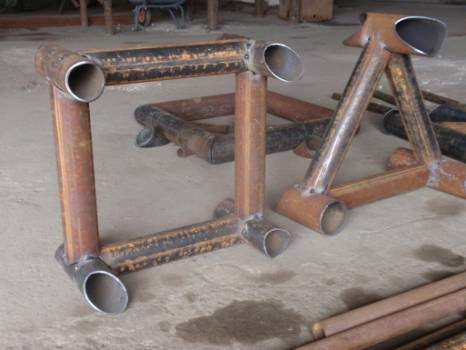

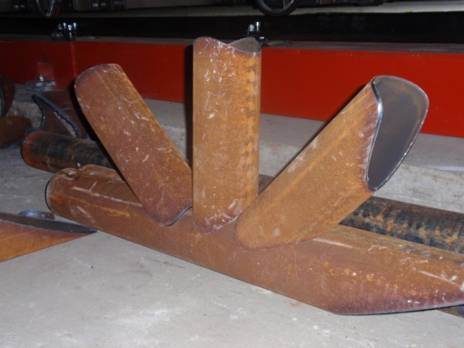

Pipe end cutting (straight end cut, miter end cut), three-branch bevel, hole cutting, T-joint cutting (inner-fit, out-fit, off-center), branch pipe cutting, T-joint end cut (center / off-center), slant joint end cut (center / off-center), grooving, rectangle hole cut, slit cut (center / off-center), oblique crossing cutting, slant joint hole cut (center / off-center), multi-branch cutting, multi branch profile cut, multi branch and branch end cut, annular pipe crossing cut, elbow (shrimp joint) cut. Max bevel angle in both vertical and horizontal direction, with fixed angle and fixed point beveling setting and continuous cut setting.

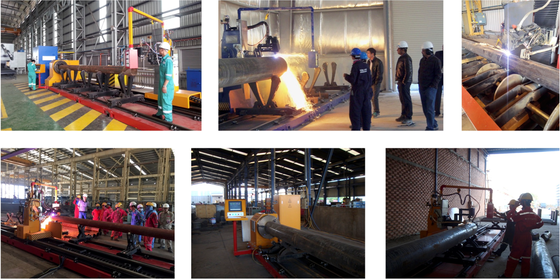

Product Images
Commercial Terms
| Item | Value |
|---|---|
| Unit price | CNY 835,000 FOB Shanghai |
| Validity | 45 days |
| Production time | Within 60 days against advance payment |
| Payment term | 30% against the PI, 70% balance before machine delivery |
| Packing | Wooden case, shipping by one full 20GP container |
Product Highlights
Large diameter round pipe plasma profile cutting machine, 500-1050mm pipe OD, 12000W plasma source with 3D bevel torch, 3 jaws concentric chuck, 6000Kg loading and precision 0.2mm/1000mm for T-joint, hole, multi-branch and elbow cutting.
