CNC 5 Axis Round Pipe Plasma Cutting Machine CNCXG1200-V 12000W 500-1050mm Profile Cutter
Product Details
| Machine Type: | 5-axis CNC Round Pipe Profile Plasma Cutting Machine | Model: | CNCXG1200-V |
|---|---|---|---|
| Pipe Diameter (OD): | 500-1050mm | Pipe Length: | 12000mm |
| Cutting Mode: | Plasma Cutting | Plasma Cutting Thickness: | 1-25mm (chamfer Cutting 22mm) |
| Plasma Power Source: | 12000W High Power Plasma Source | Plasma Cutting Torch: | 3D Plasma Profile Cutting Torch |
| Height Sensor: | Photoelectric Height Sensor, 0.1s Response | Control System: | Bus-type CNC Control System (industrial Ethernet Field Bus) |
| Operating System: | Industrial Control Operating System | Display: | 19 Inch Explosion-proof Touch Screen |
| Software: | English Version Control Software | Field Bus: | Industrial Ethernet Field Bus |
| Axis Number: | More Than 6 | I/O Modules: | Bus I/O Modules |
| Peripheral: | USB X4, RS232/485, Ethernet | Pipe Chuck: | Manual 3 Jaws Concentric Chuck With Auto Up/down |
| Max Loading Capacity: | 6000Kg | Pipe Rotate Speed: | 0-10000mm/min |
| Moving Error: | 0.2mm/1000mm | Net Weight: | 5000Kg |
| Servo Motor: | High-precision AC Servo | Gear Box: | Imported Precision Gear Box |
| Water Cooler: | Industrial Water Cooler | ||
| Highlight |
5 Axis Pipe Plasma Cutting,12000W Plasma Power Source,500-1050mm Pipe Diameter Capacity |
||
Product Description
CNCXG1200-V 5-Axis CNC Round Pipe Plasma Cutting Machine
This round pipe profile plasma cutting machine is a 5-axis CNC system designed for cutting circular pipe in diameters from 500mm to 1050mm and lengths up to 12000mm. With a 12000W high power plasma source, a 3D plasma profile cutting torch and a photoelectric height sensor, it performs straight and bevel cutting, hole cutting, T-joint, multi-branch and elbow (shrimp joint) profiles on carbon steel, stainless steel and other metal pipes, cutting 1-25mm wall thickness.
Why Choose the CNCXG1200-V Round Pipe Plasma Cutting Machine
- 5-axis pipe plasma cutting - more than 6 controlled axes for round pipe profile and bevel cutting from 500mm to 1050mm diameter.
- 12000W plasma power source - high power source cuts 1-25mm pipe wall thickness with chamfer cutting up to 22mm.
- 3D plasma profile torch with photoelectric height sensor - 0.1 sec height response keeps the cutting distance constant along complex pipe profiles.
- 12000mm pipe length capacity - long 12000mm rail handles standard commercial pipe lengths in one clamping.
Technical Specifications
| Parameter | Value |
|---|---|
| Machine type | 5-axis CNC round pipe profile plasma cutting machine |
| Pipe diameter (OD) | 500-1050mm |
| Pipe length (torch rail length) | 12000mm |
| Cutting mode | Plasma cutting |
| Plasma cutting thickness | 1-25mm (chamfer cutting 22mm) |
| Plasma power source | 12000W high power plasma source |
| Plasma cutting torch | 3D plasma profile cutting torch |
| Height sensor | Photoelectric height sensor, 0.1 sec response speed |
| Control system | Bus-type CNC control system (industrial Ethernet field bus) |
| Operating system | Industrial control operating system |
| Display | 19 inch widescreen with explosion-proof touch screen |
| Software | English version control software |
| Field bus mode | Industrial Ethernet field bus |
| Axis number | More than 6 |
| I/O | Bus I/O modules |
| Peripheral | USB x4 (USB3.0 x1), RS232/485 serial port, Ethernet |
| Pipe chuck | Manual 3 jaws concentric chuck with auto up and down function |
| Max loading capacity | 6000Kg |
| Pipe rotate speed | 0-10000mm/min |
| Moving error | 0.2mm / 1000mm |
| Net weight | 5000Kg |
Key Spare Parts
| Part | Specification |
|---|---|
| Chuck | 3 jaws chuck, 1 set |
| Pipe support bracket | Support bracket |
| Driving motor | High-precision AC servo motor |
| Driving control system | High-precision AC servo driver |
| Reduce gear box | Imported precision gear box |
| Torch height sensor | Plasma torch height sensor, 1 set |
| Plasma power source | 12000W, 1 set |
| Plasma cutting torch | 3D plasma profile cutting torch, 1 set |
| Water cooler | Industrial water cooler, 1 set |
Pipe Profile Cutting Capability

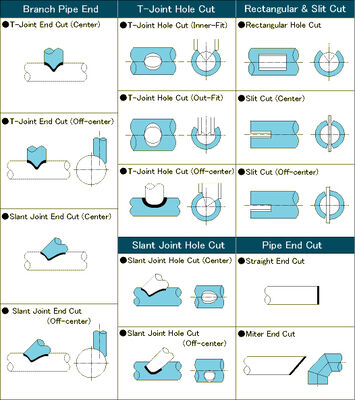

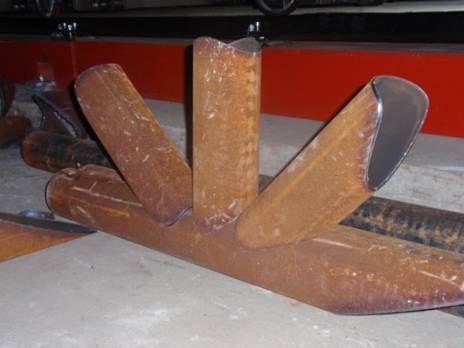

Pipe end cutting (straight end cut, miter end cut), three-branch bevel, hole cutting, T-joint cutting (inner-fit, out-fit, off-center), branch pipe cutting, T-joint end cut (center / off-center), slant joint end cut (center / off-center), grooving, rectangle hole cut, slit cut (center / off-center), oblique crossing cutting, slant joint hole cut (center / off-center), multi-branch cutting, multi branch profile cut, multi branch and branch end cut, annular pipe crossing cut, elbow (shrimp joint) cut. Max bevel angle in both vertical and horizontal direction, with fixed angle and fixed point beveling setting and continuous cut setting.
Product Images
Commercial Terms
| Item | Value |
|---|---|
| Unit price | CNY 835,000 FOB Shanghai |
| Validity | 45 days |
| Production time | Within 60 days against advance payment |
| Payment term | 30% against the PI, 70% balance before machine delivery |
| Packing | Wooden case, shipping by one full 20GP container |
Product Highlights
5-axis CNC round pipe plasma cutting machine CNCXG1200-V, working diameter 500-1050mm, 12000W plasma source, 12000mm pipe length, 3D plasma profile torch for 1-25mm pipe profile cutting.
