Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect

Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect
Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect

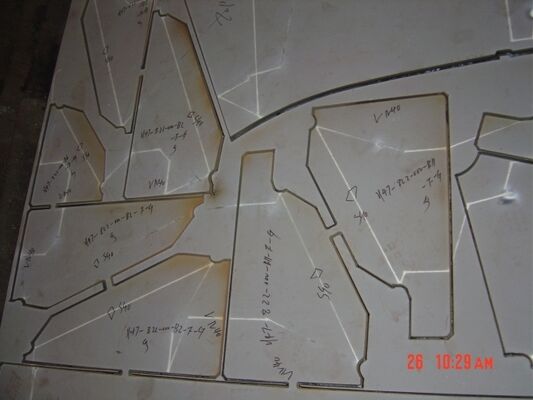

Large Image :  Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect

Product Details:
Place of Origin: Shanghai, China
Brand Name: HYZONT
Certification: CE / ISO 9001
Model Number: HZSG5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 55,800 FOB Shanghai
Packaging Details: Plywood case / film wrapped, 5300x2300x1890mm, 3650Kg, suitable for container shipment
Delivery Time: 50 days after down payment received
Payment Terms: 100% L/C at sight,T/T
Supply Ability: 30 Sets per Month
Contact Now

Large Format Gantry CNC Plasma Oxy-fuel Cutting Machine HZSG5000 4200x12500mm EDGE Connect

Description
Machine Type: Gantry Type CNC Plasma And Oxy-fuel Cutting Machine Model: HZSG5000
Effective Cutting Area: 4200x12500mm CNC Controller: EDGE Connect
Plasma Power Source: MAXPRO200 Plasma Cutting Thickness: Dross-free Mild Steel 20mm; Pierce 25mm; Severance 45mm
Oxy-fuel Cutting Thickness: 6-120mm Plasma Cutting Speed: 50-5000 Mm/min
Oxy-fuel Cutting Speed: 0-800 Mm/min Idle Running Speed: 0-12000 Mm/min
Longitudinal Rail Length: 14500mm Rack Pitch: CP6, Accuracy Grade 7
Drive Model: Dual-side Drive Servo Motor: Panasonic A5 AC Servo
Gear Box: Germany SEW Gear Box Height Control: Arc Voltage THC + Capacitance Controller
Nesting Software: FastCAM Pro PLC: Delta
Electric Components: Schneider Input Power: 5KW, 50KVA Plasma Source
Supply Voltage: 3x380V / 220V 50Hz Torch Lifting Distance: 200mm
Torch Height Accuracy: +/-1.0mm Positioning Accuracy: +/-0.2mm/10m
Cutting Materials: Mild Steel, Stainless Steel, Aluminium Effective Cutting Width: 4200mm
Effective Cutting Length: 12500mm
Highlight:

Large Format 4200x12500mm Cutting Table

,

EDGE Connect CNC Controller

,

FastCAM Pro Automatic Nesting Software

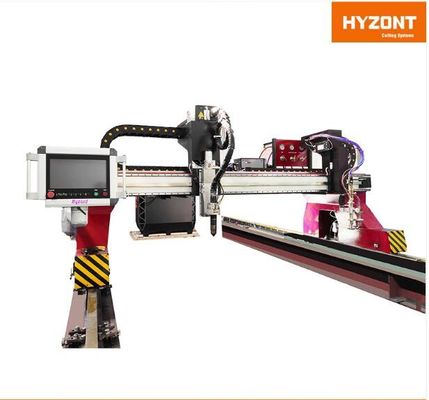

Hyzont HZSG5000 Gantry CNC Plasma and Oxy-fuel Cutting Machine

The HZSG5000 is a heavy-duty gantry type CNC plasma and oxy-fuel cutting machine engineered for steel structure fabrication, pressure vessel building and shipyards. It combines a MAXPRO200 plasma source, a EDGE Connect CNC controller and an oxy-fuel flame station on a single rigid gantry, cutting mild steel, stainless steel and aluminium from thin sheet up to 120 mm plate.

Why Choose the HZSG5000 Gantry Cutting Machine

  • Large format 4200x12500mm cutting table - wide gantry and long rail process oversized steel plates in one setup, ideal for shipyards and heavy fabrication.
  • EDGE Connect CNC controller - Phoenix v10 software, EtherCAT machine interface and CutPro Wizard for fast setup by new operators.
  • FastCAM Pro automatic nesting software - DXF import, CAD clean-up, interactive and automatic nesting, common cutting and bridging to maximise plate utilisation.
  • Dual plasma and oxy-fuel process - MAXPRO200 plasma plus auto-ignition oxy-fuel torches cover 6-120 mm plate range.

Technical Specifications

ParameterValue
Machine typeGantry type CNC Plasma and Oxy-fuel cutting machine
CNC controller EDGE Connect (Phoenix v10, EtherCAT, soft operator console)
Plasma power source MAXPRO200
Plasma cutting thicknessDross-free mild steel 20 mm (3/4"); pierce 25 mm mild steel / 25 mm stainless; severance 45 mm mild steel / 45 mm stainless
Plasma cutting speed50-5000 mm/min
Oxy-fuel cutting thickness6-120 mm
Oxy-fuel cutting speed0-800 mm/min
Torch lifting distance200 mm
Idle running speed0-12000 mm/min
Speed setting error≤±5%
Torch height controller accuracy≤±1.0 mm
Longitudinal line accuracy±0.2 mm / 10 m
Side length accuracy±0.5 mm (1000x1000 mm)
Diagonal error±0.5 mm
Base point return error±0.2 mm
Intersection point error±0.5 mm

Mechanical and Electrical Components

ComponentSpecification

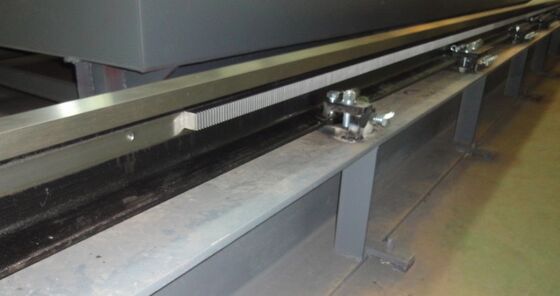

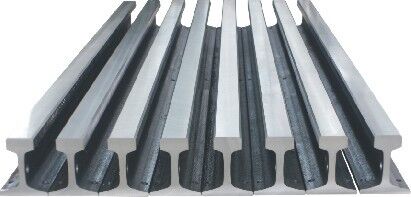

Longitudinal railHeavy rail with rack and pinion, material U71Mn, loading capacity ≥10T/m, tensile strength ≥883 MPa
Horizontal railBall screw rail, torch transmit by steel belt
RackAccuracy grade 7, pitch CP6, machining accuracy 0.02 mm
Drive modelDual-side drive

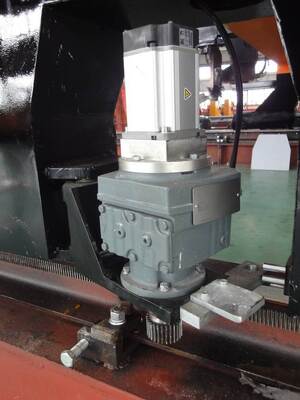

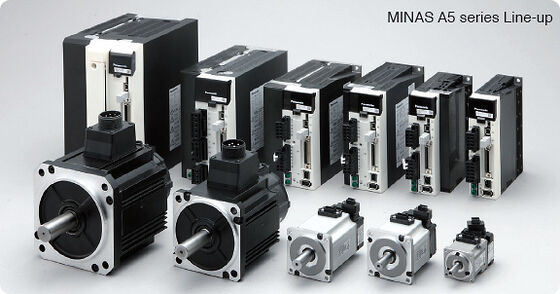

Servo motorsPanasonic A5 AC servo (20 bits/rev, 1.04 million pulses, 2.0 kHz response, IP67, low cogging torque)
Gear boxGermany SEW gear box, high output torsion, low noise

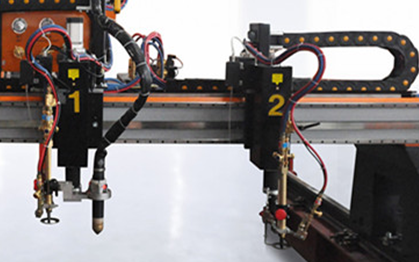

Cutting torch carrier2 sets
Plasma torch MAXPRO200 ×1, with anti-collision device
Oxy-fuel torches2 sets, auto-ignition ×2
Height controllersArc voltage plasma THC ×1, capacitance torch height controller ×2
Marking torchZinc powder mark torch ×1
PLC / electricsDelta PLC, Schneider electric components
Nesting softwareFastCAM Pro (Australia), DXF import, auto nesting, NC output
Cable/hose supplyPedrail

Working Conditions

ItemValue
Supply power voltage / frequency3×380V±10% / 50Hz, 220V±10% / 50Hz
Input power5 KW
Plasma source power50 KVA
Cutting oxygen pressure0.5-0.8 MPa
Pre-heat oxygen pressure0.4-0.6 MPa
Gas pressure0.05-0.1 MPa
Gas typePropane / Acetylene / LPG
Ambient temperature0-50 °C
Relative humidity<90% no condensation

Effective Cutting Capacity

ItemValue
Effective cutting area4200x12500mm
Effective cutting width4200 mm
Effective cutting length12500 mm
Longitudinal rail length14500mm
Horizontal rail length5000 mm

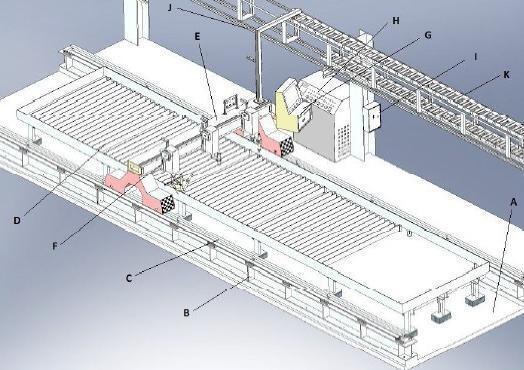

Machine Body and Structure

The machine body is a box type welded structure processed by CNC planing and CNC milling machines, then tempered and painted in a spray booth. The dual drive adopts a symmetrical structure for excellent rigidity and intensity, giving long service life with very high accuracy. Horizontal torch travel is transmitted by steel belt for smooth, low-noise motion.

Software: EDGE Connect & FastCAM Pro

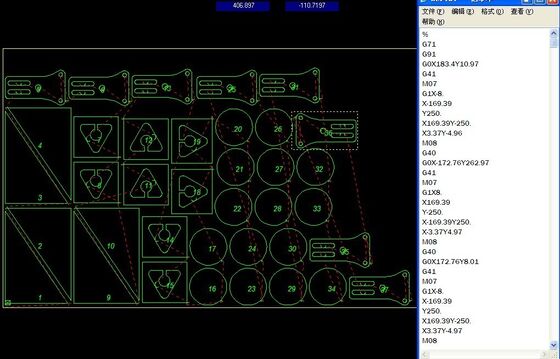

EDGE Connect with Phoenix v10 software delivers CutPro Wizard setup, on-screen software operator console, configurable process monitoring panels and integrated communication with plasma and torch height control for expert cut quality. FastCAM Pro nesting software imports DXF files, performs CAD clean-up, interactive and automatic nesting, common cutting and bridging, and outputs NC code for different controllers.

Product Images

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Gantry CNC plasma oxy-fuel cutting machine

Commercial Terms

ItemValue
PriceUSD 55,800 FOB Shanghai
Production time50 days after down payment received
Payment terms100% L/C at sight
Package5300×2300×1890 mm / 3650 Kg
Installation and training1 technician approx. 10 days, USD 200/day
Validity30 days

Note: for gantry type cutting machine this quotation excludes rail installation foundation, cutting table and pedrail hanger. Full sets of installation drawings are supplied to the buyer upon receipt of the down payment.
