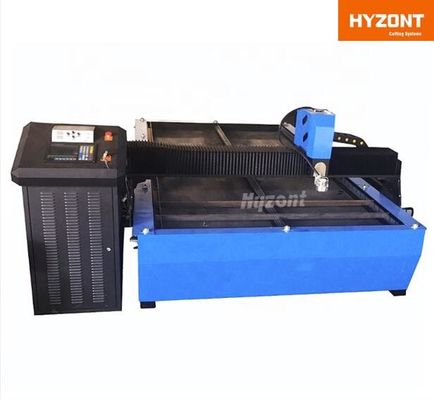

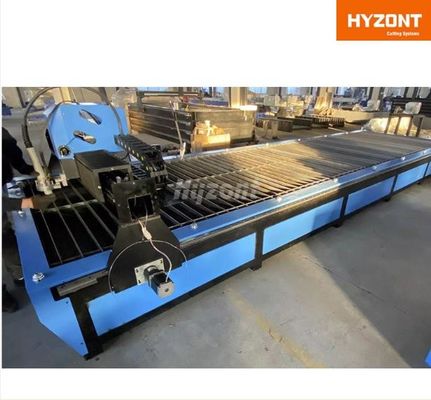

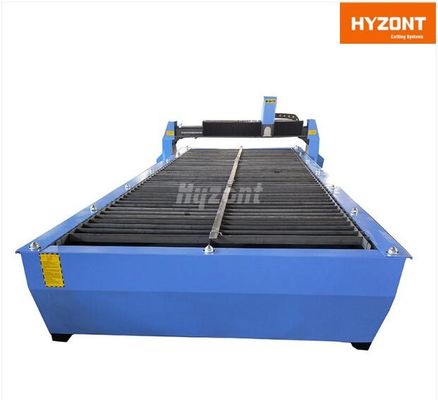

Desktop CNC Plasma Cutting Machine Metal Cut Table 220V ;Plasma cutting Table ; China plasma cutting table
Product Details
| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | TNC-1530 |
| Certification: | CE | Brand: | Hyzont |
| Highlight |
Desktop CNC Plasma Cutting Table,TNC-1530 China Made Cutter,220V Metal Cut Table |
||
Product Description
Desktop CNC Plasma Cutting Machine Metal Cut Table 220 V ;Plasma cutting Table ; China plasma cutting table
Features:
The plasma metal cutting machine is a CNC machine /equipment for metal cuttings by a plasma torch.

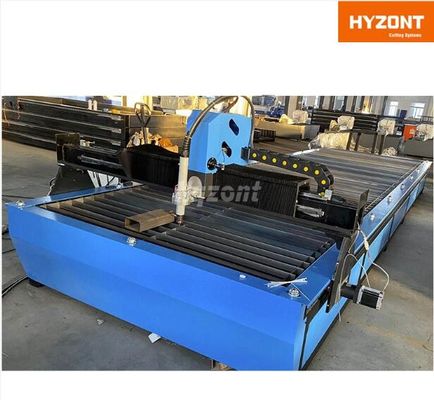

It is able to cut sheet metals, stainless steel, etc. With the help of a rotary device, it can also cut square metal tubes, round metal tubes.
* With very high precision for cutting SS MS and other metals.
* Small cutting gap, with no residua
* Light design of the beam promises high cutting speed and accuracy.
* Working with computer and support G code and files of FASTCAM software (specilized in cutting metal material)
* Start control system and Start THC device
Specification:
| Name | Table Type CNC Cutting Machine |
| Model | TNC-1530 |
| Structure | Table type, dual drive |
| Machine whole dimension | 2000x3500x1500 mm |
| CNC Controller dimension | 33x55x110 mm |
| Effective cutting size | 1500×3000 mm |
| Transmission | Longitudinal and Transversal main trolleys: rack & pinion Transversal slave trolley: steel belt |
| Tube Transmission | Transversal: Industrial plastic drag chain; Longitudinal: earthing drag chain |
| Plasma Cutting thickness | Depends on plasma source capacity |
| Torch No. | One plasma torch station |
| Torch height control | Arc voltage auto THC for plasma cutting, adjustable |
| Drive system | Dual drive, servo motors |
| CNC system | FLSK |

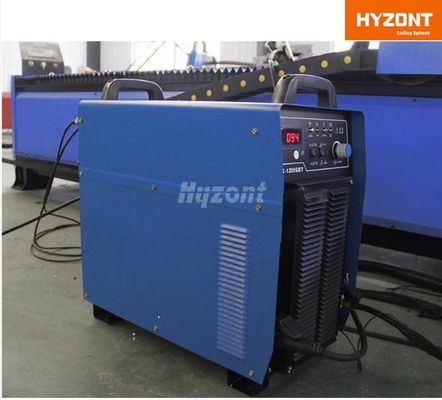

| Plasma Power Source | Options |
| Speed regulation range | 0--8000 mm/min |
| File transmission | USB |
| Accuracy | ±0.5 mm |
| Power supply | 50/60 Hz, 380 V, 3 Phase |
The integrated design of this machine make it easy to install. Taiwan Hiwin liner guide, dual drive and Japan Panasonic, this machine could achieve high cutting speed and high cutting quality. With work table, easy to use.
