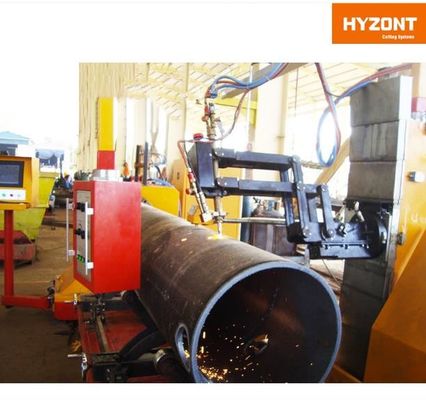

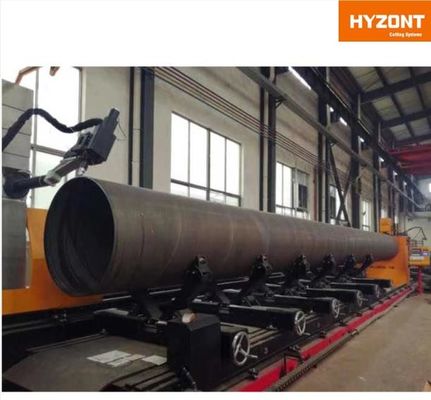

Beveling CNC Pipe Plasma Cutting Machine With Touch Screen Panel
  • Beveling CNC Pipe Plasma Cutting Machine With Touch Screen Panel
  • Beveling CNC Pipe Plasma Cutting Machine With Touch Screen Panel

Beveling CNC Pipe Plasma Cutting Machine With Touch Screen Panel

Place of Origin China
Brand Name Hyzont
Certification CE
Model Number CNCXG-800
Product Details
220V Plasma Cnc Machine
10000 Mm/Min
High Light:

Beveling CNC Pipe Plasma Cutting Machine


Touch Screen Cnc Pipe Plasma Cutter


Automatic Cnc Pipe Plasma Cutter

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Packaging Details
Wooden case
Delivery Time
Payment Terms
T/T, L/C
Supply Ability
1000Sets /month
Product Description

Diameter 30-1600mm 5 Axis Plasma And Oxy Fuel Gas CNC Pipe Profile Coping Cutting Machine

Using Plasma And Oxy Fuel/Gas/Flame to profile cutting and coping pipes, both in round pipe and square/rectangle pipes, with cutting diameter range 30-1600mm, length 12000mm, max thickness can be up to 80mm.


1. Machine Description

CNC Pipe Profile Cutting Machine

u Oxy-fuel and plasma cutting and beveling

u Maximum cutting pipe diameter 1600mm

u 3D Cutting

u Touch screen panel, convenient and fast data inputting, easy to use and learn

u Saving cutting data any time, able to create technical data base by user

u Compatible with Steel Structure designing software, expanding of machine function


Use of equipment performance

CNCXG series cnc pipe cutting machine is specially designed equipment for steel pipe 3-D automatic cutting.

After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.

It is widely used in steel structure, ship building, bridge and steel tower building, petrochemical piping and pressure vessel industry.


Optional items:

• 5 jaws concentric chuck

• Turning roll(cutting pipe dia can be up to 2500mm)

• Fastpipe/fastframe software

• Electric jaw

• Electric adjusting bracket

• Photoelectric sensor


2. Technology parameters:

Technical Data
Model CNCXG300 CNCXG600 CNCXG800 CNCXG1250 CNCXG1400 CNCXG1600
Cutting Pipe Diameter (mm) Φ40-300 Φ60-630 Φ60-800 Φ100-1250 Φ200-1400 Φ200-1600
Pipe length(mm) 2000-12000 2000-12000 2000-12000 2000-12000 2000-12000 2000-12000
Cutting Speed (mm/min) Flame: 50-750 Plasma: 50-5800
Cutting Thickness(mm) Flame:5-60mm Plasma:1-50mm
Plasma max beveling angle ±45°
Flame max beveling angle ±60°
Basic components
Pipe Chuck 3 jaws concentric chuck
Cutting Mode Flame and Plasma
Number of Control Axis 2-6
Driving Motor Panasonic/Yaskawa
Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
Other Data
Operation language English or Chinese
Power voltage 3×380V±10% 50Hz / according to user’s local condition
