220V Plasma Cnc Pipe Profile Cutting Machine 10000Mm/Min Beveling Grooving

Diameter 30-1600mm 5 Axis Plasma And Oxy Fuel Gas CNC Pipe Profile Coping Cutting Machine


Using Plasma And Oxy Fuel/Gas/Flame to profile cutting and coping pipes, both in round pipe and square/rectangle pipes, with cutting diameter range 30-1600mm, length 12000mm, max thickness can be up to 80mm.

1. Machine Description

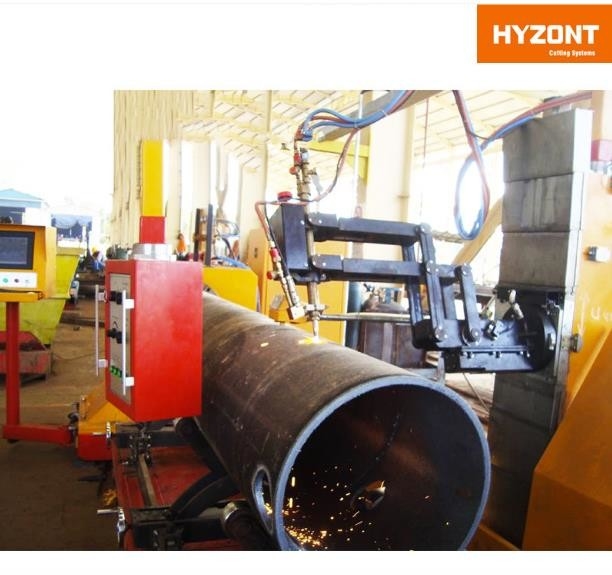

CNC Pipe Profile Cutting Machine

u Oxy-fuel and plasma cutting and beveling

u Maximum cutting pipe diameter 1600mm

u 3D Cutting

u Touch screen panel, convenient and fast data inputting, easy to use and learn

u Saving cutting data any time, able to create technical data base by user

u Compatible with Steel Structure designing software, expanding of machine function

Use of equipment performance

CNCXG series cnc pipe cutting machine is specially designed equipment for steel pipe 3-D automatic cutting.

After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.

It is widely used in steel structure, ship building, bridge and steel tower building, petrochemical piping and pressure vessel industry.

Optional items:

• 5 jaws concentric chuck

• Turning roll(cutting pipe dia can be up to 2500mm)

• Fastpipe/fastframe software

• Electric jaw

• Electric adjusting bracket

• Photoelectric sensor

2. Technology parameters:

Above machine can be customized
