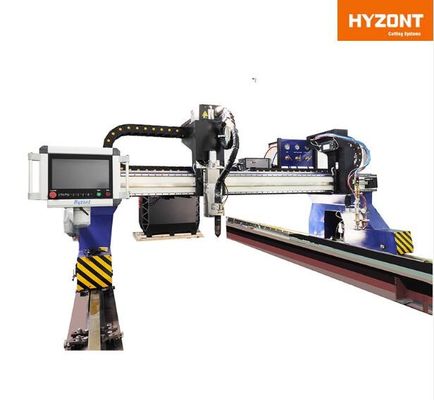

Welded Annealed CNC Plasma Cutting Table Automatic Programming
Product Details
| Name: | 220V Plasma Cnc Machine | Model: | CNCSG-4000 |
|---|---|---|---|
| Speed: | 10000 Mm/Min | Brand: | Hyzont |
| Highlight |
Welded Annealed Plasma Frame,Automatic Programming CNC,Stress Relieved Cutting Table |
||
Product Description
Gantry Type Series CNCSG is heavy duty, precision machine, specially designed for cutting large steel plate, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality. Optional items:
Powder marking device
Straight line stripe cutting torch
Straight line triple beveling torch
Rotary triple flame curve beveling torch
Rotary plasma curve beveling torch
Blow and draft dust and fume collection system
Water surface and underwater cutting table
Machine Features
1. Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle
condition.
2. Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
3. Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so
that we can achieve the best cutting quality.
4. Able to cut work piece with several torches at the same time, can improve cutting efficiency
5. Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
6. Reliable, safe CNC system, automatic programming, optimization nesting and piercing path, so that we can save steel
effectively
Technical Specification
| Effective Cutting Width (mm): | 3000 to 8000 (customized) |
| Effective Cutting Length (mm): | 6000 to 30000(customized) |
| Flame Cutting Thickness(mm) | 5-120 mm (Max 300 mm) |
| Plasma Cutting Thickness(mm) | 1-80 mm(according to plasma model) |
| Cutting Mode | Plasma and Oxy-Fuel/Flame |
| Drive Mode | AC Servo motor, Dual-drive |
| Cutting Torch Number | Customization |
| Driving Motor | Panasonic/Yaskawa |
| CNC Controller | EDGE CONNECT TC; EDGE CONNECT; LKNC-3200 |
| Available Plasma Power | , Kjellberg, Victor, ESAB |
| Programming Software | Fastcam, SmartNest, |
| Input Power Voltage | 3×380V±10% 50 Hz/according to user's local condition |
| Operation Language | Multilanguage |
Main Application: CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
Cutting Sample
Please kindly advise us of the following information:
1. The main usage of the workpiece, it is better to send us the cutting drawings or your product pictures.
2. The effective cutting size?
3. The cutting material: Carbon steel, stainless steel, aluminum, and cutting thickness separately?
4. Plasma cutting or oxy fuel cutting, both?
5. Other special requirements?
