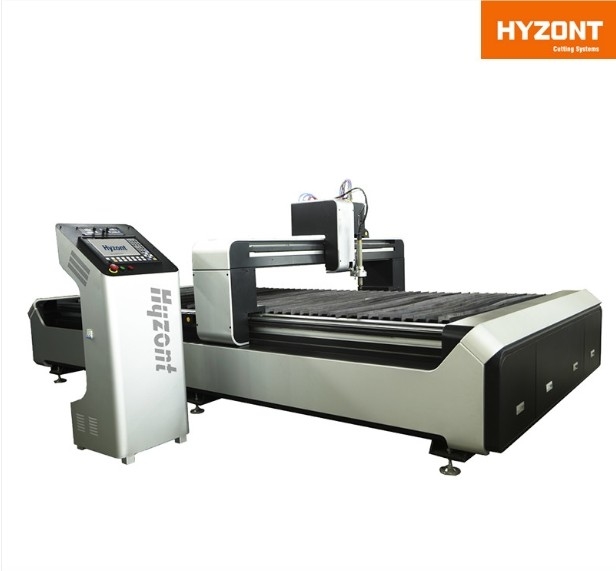

1KW Integrated Steel Frame CNC Plasma Cutting Table With LCD Color Screen
Product Details
| Name: | CNC Plasma Cutting Table | Model: | CNCTG-1530 |
|---|---|---|---|
| Certification: | CE | ||
| Highlight |
CNCTG-1530 LCD Screen Table,1kW Integrated Steel Frame,Color Screen CNC Plasma |
||
Product Description
Specification
| NAME | HIGH-PRECISION CNC PLASMA CUTTING MACHINE |
| MODEL | TNC-1530 |
| INPUT POWER | AC 220V±10%/50/60 Hz/0.5-1 kW |
| CUTTING MODE | PLASMA CUTTING |
| SPAN OF RAIL | 2200 MM |
| LENGTH OF RAIL | 3800 MM |
| CUTTING SIZE | 1500×3000 |
| LIFTING HEIGHT | ≤120 MM |
| STATION | 1 SET |
| TORCH*NO. | PLASMA TORCH 1SET |
| CUTTING THICKNESS |
PLASMA: QUALITY CUTTING 20 MM MAX. PIERCING: 22MM( 105) |
| IDLE SPEED | 20-6000 mm/min |
| CUTTING SPEED | 20-6000 mm/min |
| DRIVER |
Y AXIS: 2SETS 86 LEADSHINE STEPPER MOTOR+ PLANETARY REDUCER, DUAL SIDE X AXIS: 1SET, 86 STEPPER MOTOR |
| CONTROL SYSTEM | HYZONT-10A ( Upgrade 10 inch LCD Color Screen System) |
| AUTOMATIC ARC HEIGHT ADJUSTMENT DEVICE | 1 SET |
| OTHER CONFIGURATIONS | Longitudinal and transverse pipeline tow chains |
| NESTING SOFTWARE | FASTCAM |
| GUIDE RAIL FOUNDATION, CUTTING FRAME | Steel frame and worktable integrated machine |
| PLASMA POWER SUPPLY | Optional |
| PACKAGING | Meeting long-distance transport requirements |
Product Highlights
Specification NAME HIGH-PRECISION CNC PLASMA CUTTING MACHINE MODEL TNC-1530 INPUT POWER AC 220V±10%/50/60 Hz/0.5-1 kW CUTTING MODE PLASMA CUTTING SPAN OF RAIL 2200 MM LENGTH OF RAIL 3800 MM CUTTING SIZE 1500×3000 LIFTING HEIGHT ≤120 MM STATION 1 SET TORCH*NO. PLASMA TORCH 1SET CUTTING THICKNESS ...
