Dual drive CNC Gantry Plasma Cutting Machine
  • Dual drive CNC Gantry Plasma Cutting Machine
  • Dual drive CNC Gantry Plasma Cutting Machine

Dual drive CNC Gantry Plasma Cutting Machine

Place of Origin CHINA
Brand Name HYZONT
Certification CCC
Model Number PMCNC-2060
Product Details
High Light:

CNC Gantry Plasma Cutting Machine

,

Galvanized CNC Plasma Cutting Table

,

Gantry Plasma Cutting Machine 3500mm/Min

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
WOODEN CASE
Delivery Time
5-8DAYS
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
1000
Product Description

Brief Instruction

PMCNC SERIES is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .

Product Advantages

The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting. Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma process. Small size, great capability.High precision, low price. You buy not because it's cheap, you buy because it fits.

Applicable Industry
Plasma cutting machine are wide used in automobiles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, and other industries.

Applied Materials
Suitable for low carbon steel, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates.

Product Data

Best Seller Portable CNC Plasma Sheet Metal Cutting Machine

Model
PMCNC-2060
Power source
machine:AC220V/50hz / palasma cutter: AC380V/50hz
Effective cutting width
2300mm
Effective cutting length
6000mm ( accept tailor-made length)
Cutting thickness(flame)
5-120mm (oxygen+acetylene or propane)
Cutting thickness(plasma)
0.5-40mm Depending on the customer's plasma power supply
Cutting speed
20-3500mm/min (max.4000mm/min)
Cutting accuracy
±0.5m
Line marking accuracy
±0.2mm
Motion accuracy
±0.2mm
Torch lifting distance
≤150mm
Gas pressure
Max 0.1Mpa
Oxygen pressure
Max 0.7Mpa
Applicable gas type
Oxygen and propane or acetylene
Working interface
Chinese and English (other languages can be customized)
Duty cycle
24hours
Working temperature
0~45℃
CAD drawing conversion
nesting cut code StarCAM
Processing Materials
carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates



Product presentation

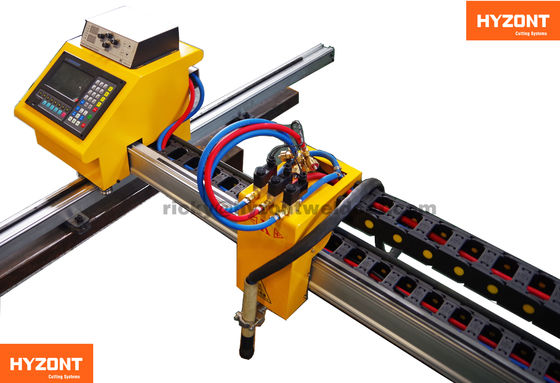

Unilateral drive system, high precision low cost portable mini CNC cutting machine. Simple and light weight. Cut any graphics on your material.
The base of the console is made of high strength aluminum alloy, once-molded, stable and anti-deformation.
• The cross beam, made by special aluminum alloy, light weight, anti-deformation, can be disassembled, facilitating the field transfer and transportation.
• The longitudinal guide rail is made by integral aluminum alloy of wide dimension, high precision and stable operation.
