CNC Plasma Cutting Machine
>
|
| Place of Origin | Shanghai |
| Brand Name | Hyzont |
| Certification | CE |
| Model Number | MNC-2030 |
Product Description

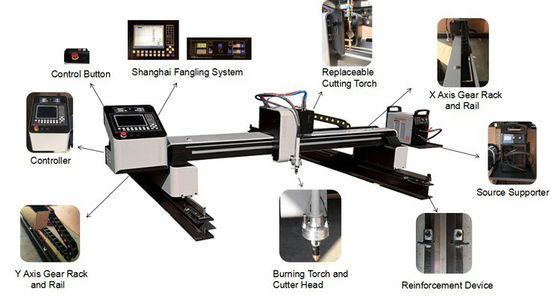

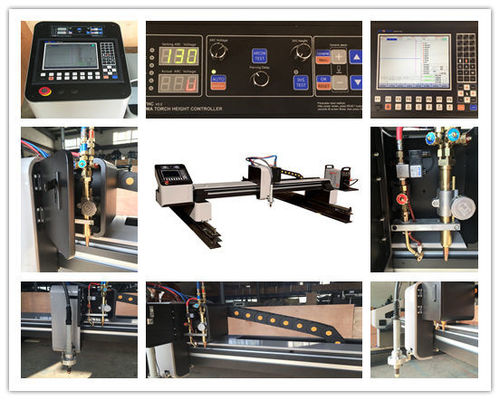

| Name | GANTRY STYLE MINI KING CNC FLAME PLASMA CUTTING MACHINE | ||
| Model No. | MNC-1530 | MNC-2030 | MNC-2530 |
| Effective Cutting Rangge X*Y | 1500*3000mm | 2000*3000mm | 2500*3000mm |
| Customized Information | Length of Y axis rails can be customized extending | ||
| Driving Configuration | Dual drive 86 series step motors with dual planetary reducers | ||
| Tool And Torch Quantity | Single tool,and can be both with plasma and flame torch | ||
| Torch Height Control | Plasma arc voltage auto torch height control or flame capacitive auto torch height control | ||
| Max. Working Speed | 6000mm/min | ||
| Input Power | Single phase AC 220V 1200W | ||
| Torch Lifting Distance(Z) | ≤100mm | ||
| Working precision | ± 0.2 mm / m | ||
| Flame (Gas) Cutting Capacity | Piercing capacity: 5-60 mm Edge start cutting: 5-120mm | ||
| Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | ||
| Controller, Software And Torch Height Control | CNCUT-10A 10.4 inch controller,FASTCAM standard software, ZZ-PTHC 2.0V plasma THC | ||
| Cutting Table and Base | H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference | ||
| PLUS | If order MINI KING PLUS we will supply KING TABLE's control cabinet and collection drawers cutting table, and If need water table or ventilation table is available | ||
| Needed Installation Area(With Plasma Supporter) | W 3.2m * L 4m * H 1.1m | W 3.7m * L 4m * H 1.1m | W 4.2m * L 4m * H 1.1m |
| Packing Size | CNC:2870*840*1040mm Rails:3200*330*190mm | CNC: 3360*840*1040mm Rails:3200*330*190mm | CNC:3870*840*1040mm Rails:3200*330*190mm |
| This product has been patented, and copying is not permitted | |||
Cutting Videos:
