OD 630mm CNC Pipe Profile Cutting Machine AutoCAD 5 Axis
  • OD 630mm CNC Pipe Profile Cutting Machine AutoCAD 5 Axis

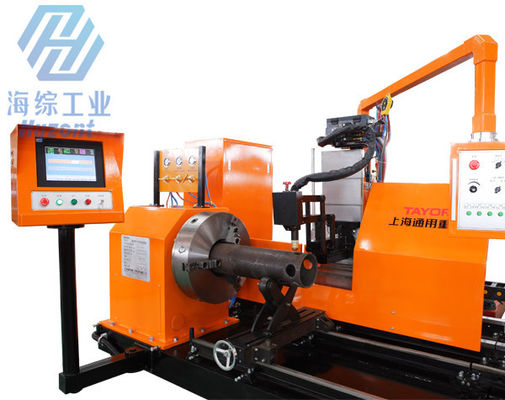

OD 630mm CNC Pipe Profile Cutting Machine AutoCAD 5 Axis

Place of Origin China
Brand Name TAYOR
Certification CE
Model Number CNCXG-600
Product Details
CNC Pipe Profile Plasma Cutting Machine
CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting
Pipe OD:
Wall Thickness:
1-30mm Carbon Steel (Plasma Cutting)
Pipe Length:
5 Axis Window Based CNC Controller
Plasma Power Source Model:
Hypertherm Powermax125
High Light:

630mm CNC Pipe Profile Cutting Machine


5 axis cnc plasma tube cutter


AutoCAD portable cnc profile cutting machine

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Case
Delivery Time
30 days after payment
Payment Terms
L/C, T/T
Supply Ability
30 Set a Month
Product Description

OD50-630mm CNC Pipe Profile Plasma Cutting Machine for Steel Structure Fabricating



Model: CNCXG600-V





This machine has been designed as automatic circular tube profile plasma cutting machine to take user more efficient who facing complicated cut job of circular tube truss building .

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting





  • Multi-axis controlled and free movement to finish pipe end or bevel cut
  • 10” Touch screen controller with appropriative software
  • Off-line programming
  • Compatible with AutoCAD and Tekla
  • Flame and plasma cutting torch for thin and stainless steel tube



Pipe Diameter Φ50-Φ630mm
Torch Rail length (Pipe length) ≤12000mm
Cutting model Flame
Plasma Cutting Thickness 1-25mm
Plasma model Hypertherm Powermax105
Flame cutting thickness 6-40mm
Photoelectric Height Sensor 0.1 sec response speed
Control System pipe profile cutting software
Data input Torch Screen Data Input
Max Loading capacity 4000Kg
Pipe Chuck 3 Jaws concentric chuck
Flame Max beveling angle ±60°
Plasma Max beveling angle ±45°
Flame cutting speed 50mm/min -800mm/min
Plasma cutting speed 100mm/min-4000mm/min
Moving Error ≤0.2mm /1000mm
Turning Angle Error ≤1° per 180°
Pipe Rotate speed 0-10000mm/min


Detailed Pictures

OD 630mm CNC Pipe Profile Cutting Machine AutoCAD 5 Axis 0

             Profile Cutting Effect of  CNCXG600-V






Order information

Order Code CNCXG600-V
Packing Wooden Case and Pallet
Packing Size 2200*5200*2000mm
Packing Weight 5000Kg
Delivery Time 30 Days after payment
