Integrated Steel Frame CNC Plasma Cutting Table
Product Details
| Name: | CNC Plasma Cutting Table | INPUT POWER: | AC 220V±10％／50／60Hz／0．5—1KW |
|---|---|---|---|
| Type: | Integrated Steel Frame | CUTTING MODE: | PLASMA CUTTING |
| TORCH*NO.: | PLASMA TORCH 1SET | CUTTING THICKNESS: | PLASMA : QUALITY CUTTING 20 MM MAX. PIERCING : 22MM( 105) |
| CONTROL SYSTEM: | CNCUT-10A ( Upgrade 10 Inch LCD Color Screen System) | SPAN OF RAIL: | 2200 MM |
| Highlight |
Integrated Steel Frame Table,Stable CNC Plasma Cutting,220V CNC Plasma Frame |
||
Product Description

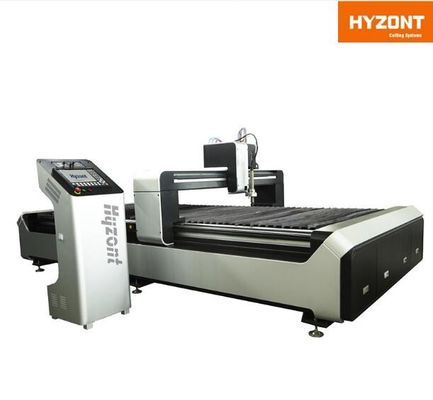

Integrated Steel Frame CNC Plasma Cutting Table
CNC Plasma Cutting Table.
A CNC plasma cutter is a computer numerical controlled (CNC) metal cutting machine using a plasma torch to cut through electrically conductive materials and create various profiles and shapes. The computer-controlled plasma system directs a high-speed jet of hot plasma at the material being profiled.
CNC plasma cutters can cut through a range of materials, including stainless steel, aluminum, mild steel, copper, and sheet metal. You’ll find heavy-duty and light industrial CNC plasma cutters in fabrication shops, restoration shops, welding shops, machine shops, and industrial construction sites, to name a few.
CNC Plasma Cutting Table CONFIGURATION
| NAME | HIGH-PRECISION CNC PLASMA CUTTING MACHINE |
| MODEL | CNCTG-1530T-ST |
| INPUT POWER | AC 220V±10%/50/60 Hz/0.5-1 kW |
| CUTTING MODE | PLASMA CUTTING |
| SPAN OF RAIL | 2200 MM |
| LENGTH OF RAIL | 3800 MM |
| CUTTING SIZE | 1500×3000 |
| LIFTING HEIGHT | ≤120 MM |
| STATION | 1 SET |
| TORCH*NO. | PLASMA TORCH 1SET |
| CUTTING THICKNESS |
PLASMA: QUALITY CUTTING 20 MM MAX. PIERCING: 22MM( 105) |
| IDLE SPEED | 20-6000 mm/min |
| CUTTING SPEED | 20-6000 mm/min |
| DRIVER |
Y AXIS: 2SETS 86 LEADSHINE STEPPER MOTOR+ PLANETARY REDUCER, DUAL SIDE X AXIS: 1SET, 86 STEPPER MOTOR |
| CONTROL SYSTEM | CNCUT-10A ( Upgrade 10 inch LCD Color Screen System) |
| AUTOMATIC ARC HEIGHT ADJUSTMENT DEVICE | 1 SET(ZZ-PTHC) |
| OTHER CONFIGURATIONS | Longitudinal and transverse pipeline tow chains |
| NESTING SOFTWARE | FASTCAM |
| GUIDE RAIL FOUNDATION, CUTTING FRAME | Steel frame and worktable integrated machine |
| PLASMA POWER SUPPLY | 105 |
| PACKAGING | Meeting long-distance transport requirements |
The CNC Plasma Cutting Table is a robust Plasma Cutting Table that offers faster, cleaner cuts with a precise motion system and a sturdy, heavy-duty build able to support up to a 1.5” inch steel plate. Our product line consists of prime-selected components and backed by a long list of great features, exceptional lifetime support all within an affordable price. Important: Plasma Cutter sold separately.
We offer stable and reliable machines and keep long terms of cooperative relationship with our user, to ensure our machines can be operated for long time at tough working conditions all of machine are factory tested.
