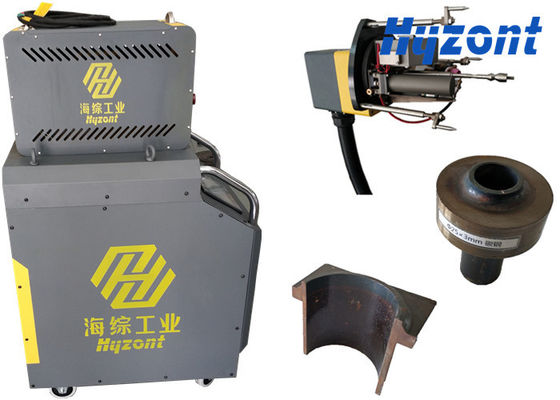

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building
TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building
TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

Large Image :  TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: TTS-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Contact Now

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

Description
Name: Tube To Tube Sheet Welding Machine Model: TTS-30
Tube OD: 12-76mm Welding Cuttent: 315A
Type Of Welding: TIG/GTAW Input Power: 380V
Tube Type: Protruding Tube Or Flush Tube Protective Gas: Argon
Highlight:

TIG Tube Sheet Orbital Welding

,

Heat Exchanger Construction Welding

,

TTS-30 Automatic Fusion Welder

TIG automatic orbital tube to tubesheet welding machine for heat exchanger building

Model: TTS-30

 Application:
       This welding head is a specially designed TIG welding head to make tube-to-tubesheet welds, which is suitable for carbon steel, stainless steel, mainly for protruding tube, flush tube and indented tube connection with or without wire feeding.

       For welds requiring filler wire addition, an optional wire feeder can be mounted on the weld head. A standard wire spool, mounted directly on the Head, provides precise and positive wire feeding, not possible with floor-mounted feeders.
       These weld Heads bring the productivity and repetitive precision of machine welding to the fabrication and repair of steam generators and heat exchangers.
       This machine is widely applied in

  • Tubular Heat Exchanger tube welding
  • Boiler Tube to Tube Sheet Welding
  • Protruding tube Welding
  • Flush Tube Welding

Features

  • Expandable pneumatic mandrel for easy positioning
  • High precision with fast and accurate performance, suitable for small heat exchanger
  • Auto AVC control with on and off function for manual adjustments
  • Water cooled TIG weld head, easy to change or adjust Tungsten
  • Integrated wire feed for recessed, protruded or flush tube ends
  • Buttons on handle for easy operation
  • Uses localized guide for self-centering of welds 19-76 mm OD
  • Recommended power source OBT-315


Specification

ModelTTS-30
MaterialCarbon steel, Stainless Steel
Type of ConnectionProtruding tube or Flush Tube
Welding ProcessTIG/GTAW
Tube OD(mm)19-76
Welding Torch Angle0-30
Tungsten OD(mm)1.6-2.4
Welding Wire Dia(mm)Φ0.8mm/Φ1.0 mm
Max wire feeding speed2200 mm/min
Swing WeldingYes
Rotating360° free rotation with auto reset; all-position welding
Rotation speed(rpm)0.37-5.58 rpm
Protective GasArgon
CoolingWater
Cable Length6m
Main Dimension(mm)
Weight(kg)9 kg

Power Source Specification



ModelOBT-315
Welding sourcePanasonic YC-315TX
Power source typeInverter
Welding Current5-315 A
Duty Cycle315 A / 60%, 250 A / 95%, 244 A / 100%
Input VoltageAC380V ± 10 % 50/ 60 Hz
Total Power8.3 kVA
CoolingBuilt-in water cooling system
Display7" touch screen
Programs Storage80
Insulation GradeF
Protection ClassIP21
Weight120 kg
Dimension740 x 520 x 910

Detailed Pictures

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

           Protruding tube to Tubesheet Welding Machine

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building

 TTS-30 TIG welding Head of  Tube to Tubesheet Welding Machine

TIG Automatic Tube To Tube Sheet Orbital Welding For Heat Exchanger Building
  OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine

Order information

Order CodeK-31580-P
PackingFlight case
Packing Size550 x 500 x 400 mm
Packing Weight15 kg + 130 kg (Welding Power Source OBT-315)
Delivery Time15 days after payment
