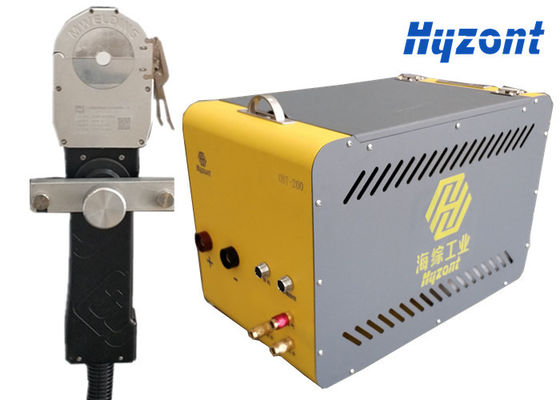

High Speed Orbital Welding mahcine Semiconductor industry purify gas pipeline Welding machine
Product Details
| Name: | Automatic Fusion TIG Orbital Welding Machine | Brand: | Hyzont/Mwelding |
|---|---|---|---|
| Model: | MWA-200 | Weld Type: | Auto GTAW |
| Applications: | Carbon Steel Or Stainless Steel Tube Butt Welding | Weld Tube OD: | 6-114mm |
| Weld Tube Thickness: | 1-4mm | Cable Length: | 6m Or Customized |
| Net Weight: | 2-6Kg Welding Head | Warranty: | 12months |
| Highlight |
Semiconductor Gas Pipeline Welding,MWA-200 High Speed Orbital Welder,Purified Gas Pipe Auto Welding |
||
Product Description
Orbital welding is a specialized area of welding in which the arc is rotated around a static pipe or tube during welding. Orbital welding systems were developed to overcome operator error and fatigue in the gas tungsten arc welding (GTAW) process.
Because orbital welding systems are fully automated and the welding torch remains in the optimal position throughout the weld, the probability of operator error is reduced and the likelihood of welding discontinuities and defects decreases.
The weld quality that orbital welding systems deliver on both small- and large-diameter pipes makes them an excellent choice for many pipe welding applications. This is why they are frequently used in the semiconductor, food processing, oil and gas, and aerospace industries.
- Semiconductor Industry
- Food and beverage Industry
- Hydraulic and fuel lines
- Cold filtered draft beer lines
- Nuclear industry
- Pharmaceutical Piping Systems
- Leak-free Tube Welding
- Ultra high purity Stainless Steel Tube Welding
Quick Details of our machine
- Compact, handy closed welding head in aluminum alloy, lightweight and durable
- Genuine German rotation motor for stable, reliable welding
- Parameters adjustable during welding for special requirements
- Built-in welding head parameters for accurate motion control
- Water-circuit cooling for long-duration operation
- Unique internal gas-orientation circuit design
- Quick-install clamps for easy use
- 12-month warranty
- Free operation training in China
| Model | MWF-40 | MWF-80 | MWF-120 |
| Material | Carbon steel, Stainless Steel, Titanium Alloy | ||
| Tube Fitting | Straight tube, Pipe flange, Elbow butt joint; | ||
| Welding Process | TIG/GTAW (no wire feeding) | ||
| Tube OD(mm/inch) | 6-38.1 mm 1/4-1 1/2 | 19.05-76.2 mm 3/4-3 | 38.1-114.3 mm 1 1/2-4 1/2 |
| Tube Wall Thickness(mm) | 3 mm | 3 mm | 3 mm |
| Tungsten OD(mm) | 1.6 | 1.6-2.4 | 1.6-2.4 |
| Rotating | 360° free rotation with auto reset; all-position welding | ||
| Rotation speed(rpm) | 0.3-6 | 0.2-4.5 | 0.15-1.9 |
| Protective Gas | Argon | Argon | Argon |
| Cooling | Water | Water | Water |
| Cooling Flow(ml/min) | 1000 ml/min | 1000 ml/min | 1000 ml/min |
| Cable Length | 6 m | 6 m | 6 m |
| Main Dimension(mm) | |||
| Weight(kg) | 2 kg | 3 kg | 6 kg |
| Dimension(mm) | 377 x 38 x 100 | 436 x 38 x 175 | 497 x 230 x 57 |
