Quality 300mmX500mm Area CNC Fiber Laser Cutting Machine For Jewelry Preocessing factory
<
Quality 300mmX500mm Area CNC Fiber Laser Cutting Machine For Jewelry Preocessing factory
>

300mmX500mm Area CNC Fiber Laser Cutting Machine For Jewelry Preocessing

Brand Name: Hyzont
Model Number: HL5-3050
Place of Origin: China
Certification: CCC
Minimum Order Quantity: 1 set
Price: USD
Supply Ability: 50 Set/month
Delivery Time: 30Days
Payment Terms: L/C, T/T
Standard Packaging: Wooden Case/1 20Gp Container
Tags

cnc tube laser cutting machine

fiber laser cnc machine

Product Details

Name: CNC Fiber Laser Cutting Machine Model: HL5-3050
Brand: Hyzont Cutting Area: 300X500mm
Power Source: 800W/1000W/1200W/1500W Controller: CyperCut
Cutting Thickness: 0.5-3 Mm Moving Speed: 40mm/70mm/90mm
Laser Power Source: FEIBO Machine Weight: 3000Kg
Highlight

300x500mm Jewelry Laser

,

HL5-3050 Fiber Laser CNC

,

Precision Jewelry Processing

Product Description

300mmX500 mm High Precision CNC Fiber Laser Cutting Machine jewelry preocessing machine

Model: HL5-3050

Applications:

High precision CNC fiber laser cutting machine adopts closed recycling System, good quality fiber laser source and high precision laser cutting head, High-precision imported servo motor, with professional laser cutting controller and software, supporting Automatically follow the focusing system, fully automatic follow the workpiece bending and undulating when cutting Focus position, ensuring precision cutting to ensure quality, specializing in 18K/24K gold, 925 silver, 999 silver, jewelry metal sheet cutting .

Features

  • Fiber laser electro-optical conversion efficiency is higher than 33%, which greatly saves power consumption during operation, saves operating costs, and achieves the high production efficiency.
  • Fiber lasers require only electrical energy for operation with minimal operating and maintenance costs.
  • Fiber lasers do not require start-up time, have the advantages of no adjustment, maintenance-free, and high stability, reducing the cost of accessories and maintenance time.
  • Fiber laser cutting offers excellent beam quality, extremely high cutting speed, high stability and low cost of ownership.
  • Fiber laser cutting process eliminates the need for mold opening, toolless tool wear, cost savings, and the ability to quickly develop new products.
  • Fiber laser cutting is flexible and easy to process, and can perform any workpiece with complex structures.
  • Fiber laser cutting process is environmentally friendly, non-toxic, clean and sanitary, and meets national environmental protection requirements.

    • Specification

    Model: HL5-3050
    Output Power 400 W/800 W/1000 W/(customized)
    Cutting Area 300 x 500 mm
    Laser Wave 1065 nm
    Cooling Water Cooling
    Max Speed 40 mm/70 mm/90 mm
    Max Thickness 1.0 mm/2 mm/2.5 mm
    Min Kerfs 0.1 mm
    Repeatability ±0.03 mm
    Controller Cycut
    Focusing Automatic
    Drive mode Gantry line servo
    power consumption ≤3.5 kW/≤4 kW/≤4.5 kW/≤6.5 kW
    Weight Approx 500 kg
    Input Power 220 V/50 Hz/30A
    floor space 1500 x 800 x 1.200 mm

    Software features:

  • The software uses high-efficiency CypCut laser cutting system CNC control software, powerful, compatible, compatible with CAD, CoreDRAW 9.0 output DXF format graphics.
  • Easy to operate, draw any two-dimensional graphics on the computer, no need to open the mold, the product can be produced immediately.
  • Powerful graphic display function, which visually shows the cutting effect and detects the cutting path in real time online.
  • Convenient and fast cutting process layout, such as adjustment, error detection, nesting, positioning, oligo, lead, layering, setting parameters, retraction, etc., very user-friendly operation mode.

    • Detailed Pictures

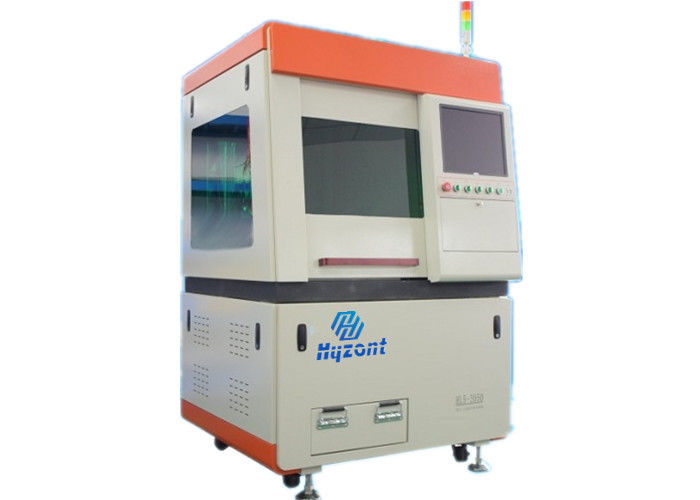

    300mmX500mm Area CNC Fiber Laser Cutting Machine For Jewelry Preocessing

    High Precision CNC Fiber Laser Cutting Machine

    300mmX500mm Area CNC Fiber Laser Cutting Machine For Jewelry Preocessing

    Metal and Jewelry Arts CNC Fiber Laser Cutting Machine

    HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
    Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
    Sales Manager: Mr. Raymond
    Mob: +86 15021164313  |  WhatsApp: +8615021164313  |  WeChat: +8615021164313
