Big Diameter CNC Pipe Profile Cutting Machine Cutting Thickness Up To 1250mm

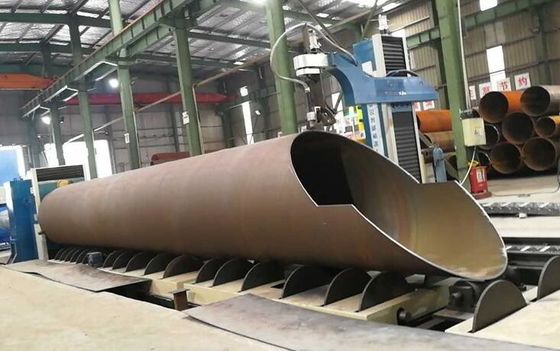

Large Image : Big Diameter CNC Pipe Profile Cutting Machine Cutting Thickness Up To 1250mm

Product Details:

Place of Origin:	China
Brand Name:	TAYOR
Certification:	CE
Model Number:	CNCXG1250-V

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	60 days after payment
Payment Terms:	L/C, T/T
Supply Ability:	30 Set a Month

Contact Now

Big Diameter CNC Pipe Profile Cutting Machine Cutting Thickness Up To 1250mm

Description

Name:	CNC Pipe Profile Plasma Cutting Machine	Model:	CNCXG1250-V
Application:	CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting	Pipe OD:	300-1250mm
Wall Thickness:	1-30mm Carbon Steel (Plasma Cutting)	Pipe Length:	Max 120000
Controller:	5 Axis Window Based CNC Controller	Plasma Power Source Model:	200
Highlight:	Big Diameter Pipe Profile Cutting , 1250mm Cutting Thickness , CNCXG1250-V Plasma Cutter

Roller Bed CNC Pipe Profile Cutting Machine Big diameter pipe CNC plasma Cutting upto 1250 mm

Model: CNCXG1250-V

Applications:

The roller bed big diameter CNC Pipe Profile Cutting Machine designed use to process big diameter pipe more than 1meter, which is diffcult to cut by hand plasma torch. It is easy to load on roller bed and easy to be rotated by powerful roller bed and more easy to use. Which is suitable for big pressure vessel buid and fabricating .

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

Pressure Vessel Building

Chemical Pipeline fabricating

Oil pipeline manufacturing

Steel Structure pipe cutting

Features

Canada professional pipe optimization CNC system, with AutoCAD version of the engineering design can be directly generated G code.

Support tube splitting /image /left and right replacement and other pipe optimization function.

Support TEKLA software seamless link, generate CNC processing code.

Adopt the shaft lifting structure, main feature is the center of the chuck is floating adjustable, adopt tube not move while chuck floating method, highly improve large diameter cutting.

Roller body, can automatically transport cutting pipe.

Specification

Pipe Diameter	300-1250 mm
Torch Rail length (Pipe length)	≤12000 mm
Cutting model	Flame
Plasma Cutting Thickness	1-25 mm
Plasma model	200
Flame cutting thickness	6-40 mm
Photoelectric Height Sensor	0.1 sec response speed
Control System	pipe profile cutting software
Data input	Torch Screen Data Input
Max Loading capacity	10000Kg
Pipe Chuck	3 Jaws concentric chuck
Flame Max beveling angle	±60°
Plasma Max beveling angle	±45°
Flame cutting speed	50 mm/min -800 mm/min
Plasma cutting speed	100 mm/min-4000 mm/min
Moving Error	≤0.2 mm /1000 mm
Turning Angle Error	≤1° per 180°
Pipe Rotate speed	0-10000 mm/min
