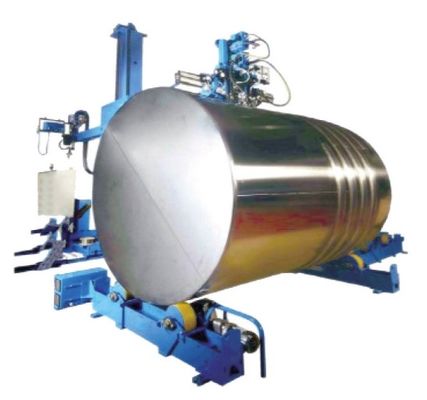

200kg Welding Weight Water Cooling Automatic Seam Welding Machine for Smooth and Precise Welds

Product Description:

This equipment is designed for circular seam welding of pipes with a diameter and a length of up to 800 mm. It is suitable for welding various pipe fittings such as pipe-to-pipe, pipe-to-flange, and pipe-to-elbow connections using butt-joint or fillet-joint techniques, with TIG welding being the preferred method.

Key specifications for this equipment include:

• Workpiece diameter range: φ20 - φ400mm;
• Workpiece wall thickness range: 1 - 12mm;
• Workpiece length range: ≤ 800mm;
• Maximum workpiece weight: 100 kg.

Prior to welding, it is important that the workpiece surface is clean and free from oil stains, rust layers, and coatings.

When using this equipment, ensure that the working environment temperature falls within -10°C to 50°C, with a relative humidity of 90% (non-condensing).

Technical Parameters:

Applications:

In the welding process of different pipe fittings like pipe-to-pipe, pipe-to-flange, and pipe-to-elbow connections, either a butt-joint or fillet-joint is used. This welding technique involves TIG welding for joining the components seamlessly.
