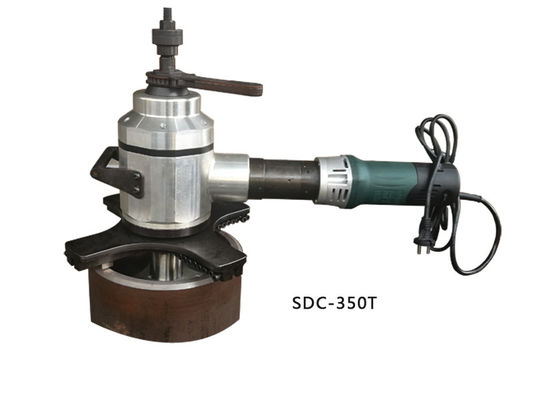

Cold Cutting Electric Pipe Beveler , Portable Pipe Beveling Tool Ф150-330
1Set
MOQ
Negotiable
Price
Cold Cutting Electric Pipe Beveler , Portable Pipe Beveling Tool Ф150-330
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: AOTAI
Certification: CE
Model Number: SDC-350T
High Light:

pipe beveling equipment

,

electric pipe beveler

Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 set a month
Specifications
Name: Tube Bevel Machine
Model: SDC-350T
Bevel Angle: 30degree And 37 Degree
Drive: 220V-230V Eletricity
Tube ID Range: Ф150-330
Place Of Origin: China
Product Description

SDC-350T Ф150-330 electricity dirve tube beveling Machine



Model: SDC-350T



Applications:

The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.

  • Boiler Pipe end beveling
  • Heat Exchanger Inside beveling
  • Pipe facing
  • Flange tube beveling



Features:



1. Cold cutting, without influence the material of the pipe

2. ID mounted, adopt T structure

3. Varity of beveling shape: U, Single-V, double-V, J beveling

4. It can also be used for repairing inner wall and deep hole processing

5. Working range: 12.5-330mm

6. Driven motor: Pneumatic and Electric

7. Customized machine is acceptable



Specificaiton:



Model



Tube ID Range mm

Wall thickness

mm

Motor Power

kw

Max

rpm

electric tool drive Pneumatic
ISY-28TX TCM-28TX Ф12.5-28 ≤3 0.71 53
ISY-80T TCM-80T Ф28-76 ≤15 0.90 53
ISY-90T TCM-90T Ф36-90 ≤15 1.43 50
ISY-28TN-1 TCM-28TN-1 Ф12.5-15 ≤3 1.43 70
ISY-28TN-2 TCM-28TN-2 Ф15-20 ≤5 1.43 70
ISY-28TN-3 TCM-28TN-3 Ф20-28 ≤6 1.43 70
ISY-80TN TCM-80TN Ф26-79 ≤15 1.43 70
SDC-120T TCM-120T Ф45-105 ≤20 1.43 34
SDC-150T TCM-150T Ф65-159 ≤20 1.43 34
SDC-150TN TCM-150TN Ф60-170 ≤20 1.43 34
SDC-350T TCM-350T Ф150-330 ≤20 1.43



POWER SUPPLIES

Electric

Convenient power supply

Stable Performance

Popular choice

Electric requirement: 220-230V 1PH 50/60HZ

Power: 0.74KW, 0.9KW. 1. 43KW







Cold Cutting Electric Pipe Beveler , Portable Pipe Beveling Tool Ф150-330 0



                          Shape of Tube bevel machine



Cold Cutting Electric Pipe Beveler , Portable Pipe Beveling Tool Ф150-330 1

    Heat Exchanger Tube facing effect by tube beveling machine
