Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move
  • Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move
  • Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move

Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move

Place of Origin CHINA
Brand Name AOTAI
Certification CE
Model Number PMF-1.0
Product Details
Name:
Tube Bevel Machine
Model:
PMF-1.0
Bevel Angle:
0-37 Degreee
Drive:
220V-230V Eletricity
Tube ID Range:
150-330
Place Of Origin:
China
Suitable For:
Carnbon Steel And Stainless Steel Tube
Wall Thickness:
Max75mm
High Light:

pipe beveling machine

,

pipe beveling equipment

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
5-8 days
Payment Terms
T/T, Western Union
Supply Ability
1000 set a month
Product Description

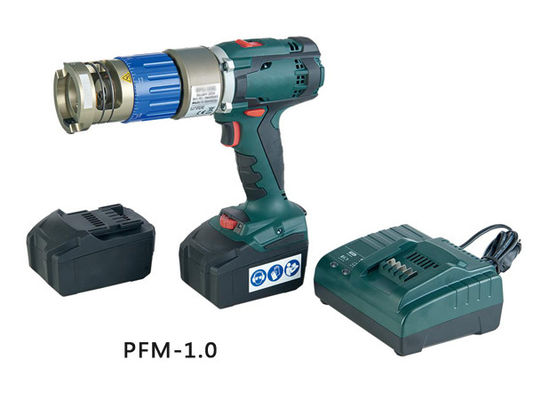

OD 3-110mm small tube portable tube beveling machine stainless steel tube end cutting

Applicable processing Tube OD range: OD 3-110mm



Model:PMF-1.0





Applications:



PFM series pipe end facing machine is mainly designed for the quick beveling end of small diameter thin-walled steel pipe. It adopts external clamping and positioning installation, equipped with special fixtures and tools, which is easy to install and fast and efficient.

Its small size, light weight and easy to carry and use, Suitable for flat and grooved end-of-pipe processing in the electronics, pharmaceutical, food, beverage, solar, semiconductor and chemical industries.





Features:

  • Complete cold cutting without changing the material of the pipe;
  • the amount of cutting can be fine-tuned, automatic feeding, high processing accuracy;
  • It is suitable for the processing of thin-walled pipe end flats and grooves with high purity requirements;
  • flat mouth processing, no burrs on the end face, 100% perpendicular to the axis;
  • the blade and fixture are installed quickly, it takes only a few seconds to process a flat mouth;
  • processing range: tube outer diameter 3mm-110mm, more specifications can be customized;
  • Pipes of different diameters are available with different specifications of fixtures;
  • Power selection: battery type and wired motor type;
  • The whole machine is small and light, easy to move, and suitable for use under various working positions and working conditions;
  • Can be used for carbon steel, stainless steel, alloy steel, aluminum alloy pipe and hard non-metallic pipe processing;



Processing:

  • pipe end facing
  • pipe end beveling



Specificaiton:

Model

PFM-1.0

PFM-1.0A

PFM-4.0A

Power Supply

Cell

Motor

Motor

OD Range

Φ3-25.4mm

Φ3-25.4mm

Φ12.7-110mm

Feed Stroke

5mm

5mm

5mm

Wall thick

0.5-3mm

0.5-3mm

0.5-5mm

No-load Speed

300rpm

300rpm

300rpm

Rated Power

14.4v

220v

220v

Power

-

1.3kw

1.3kw

Weight

2.3kg

4.8kg

19kg



Powre Supply



Electric

Convenient power supply

Stable Performance

Popular choice

Electric requirement: 220-230V 1PH 50/60HZ

Power: 1.43KW, . 2.0KW



Detailed Pictures

Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move 0

                             Tube beveling Machine Cutter



Light Portable Pipe Beveling Machine , Pipe Beveling Equipment Easy To Move 1

                 Full Sets of Hand type Tube beveling Machine
