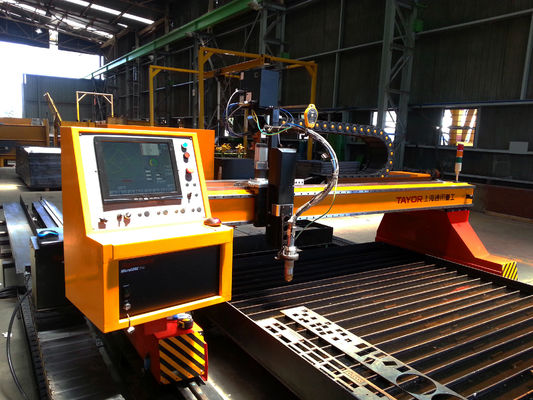

Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry

Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry
Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry

Large Image :  Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry

Product Details:
Place of Origin: China
Brand Name: TAYOR
Certification: CCC
Model Number: CNCSG3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 40000-50000
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets a month
Contact Now

Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry

Description
Name: CNC Plasma Cutter Model: CNCSG3000
Cutting Area: 2X6m Cutting Thickness: 6-120mm
Plasma Cutting Thicness: 1-40mm Power Supply: 220-440V
Plasma Model: 300
Highlight:

Double Drive CNC Table

,

300 Cutter 2 Year Warranty

,

Stable Gantry Plasma Drive

Connect TC controller with 300 plasma cutting machine 2 year warrantry plasma machine

Machine body structure

Steel hollow beam design ensures good heat dissipation without deformation;
Box weldment structure process tempering ensures excellent rigidity and intensity;
Double drive adopts symmetrical structure.

Transmission

The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;
Gear box: SEW, high output torsion low noise.

1 Brand: TAYOR

2 Model: CNCSG3000

3 Specification

NO Descriptions Specification
1 Track Width (mm) 2000
Rail length (mm) 6000
Effective Cutting Area(mm) 2000x6000
Drive Y axis Panasonic AC servo motor *2set
X axis Panasonic AC servo motor *1 set
Max traveling speed 12000 mm/min
2 Torch Moving Station

Total Three 2 Sets of Moving Station

Station 1: Oxy-fuel Torch

Station 2: Plasma torch holder
3 Flame Torch

Cutting Thickness 5-120 mm

Cutting Speed: 50-800 m/min
4 Plasma Cutting Torch Number straight torch
Plasma Torch Height Sensor THC
5 Anti-Collision Torch Holder TAYOR*1 set
Plasma Cutting Speed 50-4000 mm/min
6 Plasma source Model 300/CoreTM
7 Connect T
8 Nest Software Australia FASTCAM (professional Ver.)
9 PLC Delta* 1 set Taiwan, China
Electric Components Schneider
Cables CE approached cable
10 Water tank Table User self-made

4 Accuracy

Positioning Accuracy ±0.5 mm/10000 mm
Repeatability ≤±0.1 mm
Speed setting error ≤±5%
THC accuracy ≤±0.5 mm
Length of a side Error(mm) ±0.5 mm
Base Point Return Error ±0.4 mm
Intersection point Error ±0.5 mm
Lineation forward-reverse Error ±0.2 mm

5 Working Conditions

Power Supply

Temperature

Humidity

Surroundings

Machine: 220 V±10%;50-60 Hz(customized)

Plasma System: 3×380 V±10%;50-60 Hz(customized)

-10 °C to 50 °C

<90%, no condensation

Ventilate, no big shake
Oxy-fuel cutting gas type/Quality

Oxygen: 0.5-0.8MPa

Purity: 99.5%; Flow: 1.0 m³/min

Fuel Gas :Propane or Acetylene

Pressure: 0.05-0.1MPa
Plasma Cutting Process gases

Plasma gas Air, O2, N2

Shield gas Air, N2

Supply gas pressure 6.2 +/- 0.7 bar (90 +/- 10 psig)

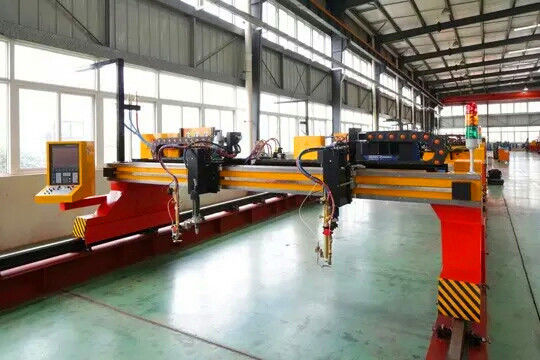

Double Drive CNC Plasma Cutting Table With 300 Plasma Cutter 2 Year Warrantry
