Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source
Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

Large Image :  Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

Product Details:
Place of Origin: China
Brand Name: TAYOR
Certification: CE
Model Number: CNCXG1000-V
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Contact Now

Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

Description
Name: CNC Pipe Profile Plasma Cutting Machine Model: CNCXG-1000V
Application: CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting Pipe OD: 200-1000mm
Wall Thickness: 1-30mm Carbon Steel (Plasma Cutting) Pipe Length: 12000mm
Controller: 5 Axis Window Based CNC Controller Plasma Power Source Model: 200
Highlight:

Roller Bed Plasma Tube Cutter

,

CNCXG-1000V Pipe Cutting

,

200 Plasma Powered

Roller Bed CNC Pipe Profile Cutting Machine With 200

Model: CNCXG1000-V

Applications:

This machine has been designed as automatic pipe profile plasma cutting machine to take user more efficient who facing complicated cut job of pipe truss building.

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting
  • Truss hole cutting

    • Features

  • Canada professional pipe optimization CNC system, with AutoCAD version of the engineering design can be directly generated G code.
  • Support tube splitting /image /left and right replacement and other pipe optimization function.
  • Support TEKLA software seamless link, generate CNC processing code.
  • Adopt the shaft lifting structure, main feature is the center of the chuck is floating adjustable, adopt tube not move while chuck floating method, highly improve large diameter cutting.
  • Roller body, can automatically transport cutting pipe.

    • Specification

    Pipe Diameter

    200-1000 mm

    Torch Rail length (Pipe length)

    ≤12000 mm

    Cutting model

    Flame

    Plasma Cutting Thickness

    1-32 mm

    Plasma model

    200

    Flame cutting thickness

    6-40 mm

    Photoelectric Height Sensor

    0.1 sec response speed

    Control System

    pipe profile cutting software

    Data input

    Torch Screen Data Input

    Max Loading capacity

    15000Kg

    Pipe Chuck

    3 Jaws concentric chuck

    Flame Max beveling angle

    ±60°

    Plasma Max beveling angle

    ±45°

    Flame cutting speed

    50 mm/min -800 mm/min

    Plasma cutting speed

    100 mm/min-4000 mm/min

    Moving Error

    ≤0.2 mm /1000 mm

    Turning Angle Error

    ≤1° per 180°

    Pipe Rotate speed

    0-10000 mm/min

    Detailed Pictures

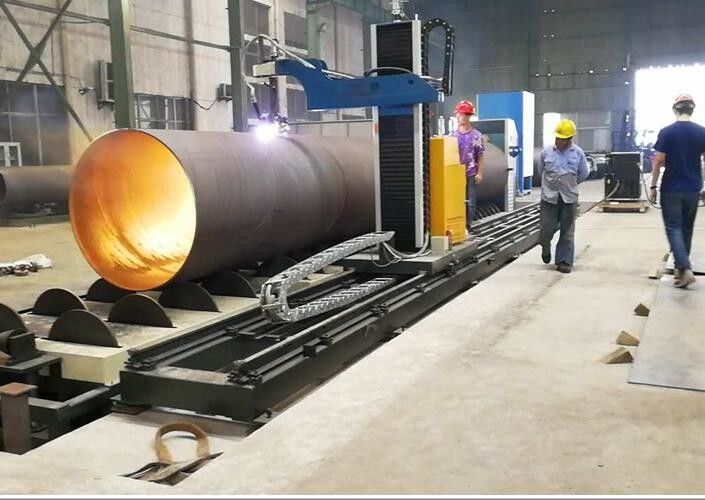

    Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

    Finish Job of CNC pipe profile cutting machine

    Roller Bed CNC Plasma Tube Cutter With 200 Plasma Power Source

    5 axis CNC Pipe Profile Cutting Machine

    Order information

    Order Code CNCXG1000-V
    Packing Wooden Case and Pallet
    Packing Size 2200 x 5200 x 2000 mm
    Packing Weight 5000Kg
    Delivery Time 30 Days after payment
