1Kw CNC Fiber Laser Cutter , IPG Power Source Coil Laser Cutting Machine High Speed 70m / Min
  • 1Kw CNC Fiber Laser Cutter , IPG Power Source Coil Laser Cutting Machine High Speed 70m / Min

1Kw CNC Fiber Laser Cutter , IPG Power Source Coil Laser Cutting Machine High Speed 70m / Min

Place of Origin China
Brand Name TAYOR
Certification CCC
Model Number TF EDGE 3015-E
Product Details
Name:
CNC Fiber Laser Cutting Machine
Model:
TF EDGE 3015-E
Brand:
TAYOR
Cutting Area:
1500X3000mm
Power Source:
500W
Controller:
CyperCut
Cutting Thickness:
0.5-16mm/Carbon Steel
Moving Speed:
Max 60m/min
Laser Power Source:
Raycuts
Machine Weight:
3000Kg
High Light:

fiber laser cnc machine

,

cnc tube laser cutting machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD
Packaging Details
Wooden Case/1 20Gp Container
Delivery Time
30Days
Payment Terms
L/C, T/T
Supply Ability
50 Set/month
Product Description

Coil laser cutting machine China brand new 1Kw CNC fiber laser cutter IPG power source 70m/min cutting speed



Model: TF3015 EDGE-E

Application:

   Fiber lasers are the newest development in laser cutting. The laser beam is created by an active fiber and transmitted over a transport fiber to the machine cutting head. Fiber lasers are significantly smaller than CO₂ lasers and generate twice as much power from the same amount of current. A fiber cutting system is primarily suited for processing thin to medium-thick sheet metal. It also cuts non-ferrous metals (copper and brass).

     CNC fiber laser cutting is are capable of processing various metal types and play an essential part in industrial and commercial activities.

This machine widely applied in



Automobile manufacturing, car decoration

Its 50%-70% components are made by laser processing. At the same time, in terms of automotive decoration, laser cutting machine meets the needs of personalized customization with its flexibility, precision and adaptability.



Mechanical equipment

The application of laser processing technology in the manufacturing of mechanical equipment includes laser welding, laser cutting, laser drilling, laser surface treatment, laser material increasing manufacturing and so on, in which laser cutting accounts for more than 70% of the total output of laser processing.



Electrical equipment

Laser cutting machine in the electrical industry is mainly used for the appearance of sheet metal parts and assembly of electrical components, thin steel parts cutting.



Hotel kitchen equipment

The use of laser cutting technology in hotel kitchen equipment not only makes the processing speed, efficiency and cost low, but also improves the cutting precision of the kitchen utensils, improves the quality of the products, and shortens the production cycle.



Elevator equipment

Laser cutting technology has won the favor of the elevator industry with its extremely fast cutting speed and cutting quality.



Advertising logo

The beautiful billboard is made of laser technology, in the advertising industry, the use of fiber laser cutting machine is the most, light, sound, action and other magical effects of laser technology performance thoroughly.



Sheet metal making

Laser cutting machine has brought about a great technological revolution for sheet metal processing.

Features

  • Safe and environment friendly
  • All-in-one design, easy to move and space saving
  • High performance qualified fiber source, which is high reliability and longevity of service.
  • Smooth cutting surface, little deformation, pretty leveling appearance.
  • Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.

Specification

Cutting Area(mm) 1500X3000/2000X4000
X-axis (mm) 3000/4000
Y-axis(mm) 1500/2000
Z-axis(mm) 120
Cutting Thickness(mm)

Mild Steel: 0.5-5

Stainless Steel: 0.5-3

Aluminum: 0.5-3

Laser cutting accuracy(mm) 0.1-0.2
Machine Tool repositioning accuracy(mm) 0.025
Machine Tool moving accuracy(mm) 0.05
Max Moving Speed(m/min) 50
Accelerated speed (G) 1
Laser Power (w) 500W
Total Power (Kw) 30Kw
Machine Dimension(LxWxH) 5150*2282*1290
Weight(Ton) 3500Kg/4800Kg
Cutting Table Single Cutting Table with dust exhausting fan



Detailed Pictures

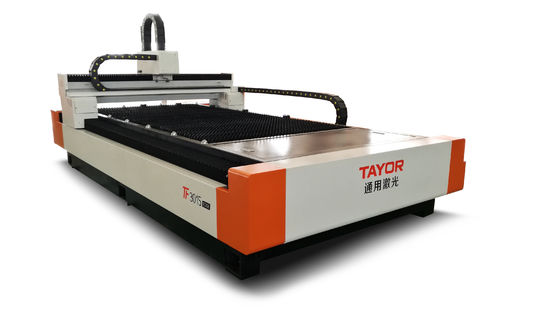

1Kw CNC Fiber Laser Cutter , IPG Power Source Coil Laser Cutting Machine High Speed 70m / Min 0



            CNC fiber laser cutting machine  Rack



1Kw CNC Fiber Laser Cutter , IPG Power Source Coil Laser Cutting Machine High Speed 70m / Min 1



           500W Fiber Laser Cutting machine with fume duct





Order information



Order Code TF3015 EDGE-E
Packing Wooden Case
Packing Size 5800*2200*1800mm
Packing Weight 3000-5000Kg
Delivery Time 25  Days after payment







TF3015 EDGE-E CNC Fiber Laser Cutting Machine Youtube Video Link:

https://www.youtube.com/watch?v=xgHAmL8MZ-E
