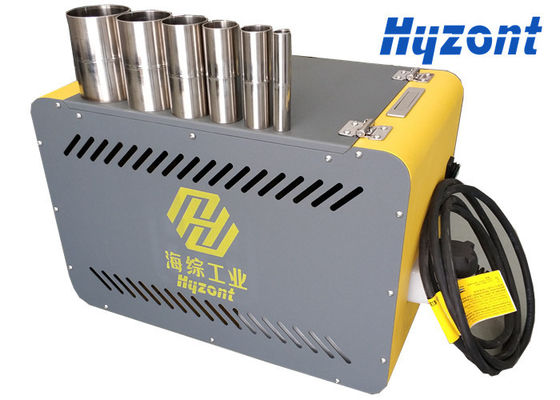

GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry

China GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry supplier

Large Image :  GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry

Product Details:

Place of Origin: China
Brand Name: Hyzont
Certification: CCC/CE
Model Number: OBT-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Flight case
Delivery Time: 5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets a Month
Contact Now
Detailed Product Description
Name: TIG Orbital Welding Power Source Brand: Hyzont
Model: OBT-200 Weld Type: TIG
Applications: Orbital Welding Input Power: 220V
Cable Length: 6m Or Customized Net Weight: 18kg






GTAW/ TIG orbital Welding Power Source Portable orbital welding machine





Brand:  Hyzont





Model:  OBT-200 (Compatible with CFH-15/30/45 Welding Head)




Application:



      TIG (manual GTAW) and fusion orbital welding (automatic GTAW) are often employed in cleanroom fabrication operations to weld similar and dissimilar metals together. These high-purity methods are crucial for highly sensitive manufacturing procedures, such as joining the tubing and fittings for semiconductor devices, where contamination can destroy products.


  • Semiconductor Industry
  • Food and beverage Industry
  • Hydraulic and fuel lines
  • Cold filtered draft beer lines
  • Nuclear industry
  • Pharmaceutical Piping Systems
  • Leek free Tube Welding
  • Ultra high purity Stainless Steel Tube Welding




Quick Details

  • Compatible for all weld heads
  • Portable and handy design, total 18kg weight with complete functions, easy to move and working at height.
  • SCM Microcomputer control system, sturdy and durable; difficult to breakdown and Low cost of maintenance;
  • Control pendant display for real-time data monitoring
  • Welding Parameters can be setup , Storage, Print and protected by password.
  • Built-in professional welding head parameters for accurate motion control.
  • Water circuit cooling design for long time working , raise substantially lift time of welding head.
  • 10”touch screen control panel, One-button print of welding parameter, easy and fast to understand.
  • Perfect fault detection solutions including: overvoltage , electric leakage, gas detection, water pressure protections and error display ;modular design for easy maintenance.





Specification

Model OBT-200
Welding source EWM (Germany)
Welding Current 200A
Power source type Inverter
Duty Cycle 200A 25%,120A 100%
Input Voltage AC220V ±10% 50/60Hz
Power 6.3KVA
Cooling Build-in Water Cooling
Display 7 touch screen
Programs Storage 32
Printer Build In Printer
Insulation Grade H
Protection Class IP21
Weight 18KG
Dimension 590*300*325
Control Function

Argon Gas Control

Welding Continuous Welding Current and Plus Current Control

Welding Head Rotation Control

Wire Feeding Control






Detailed Pictures:


GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry

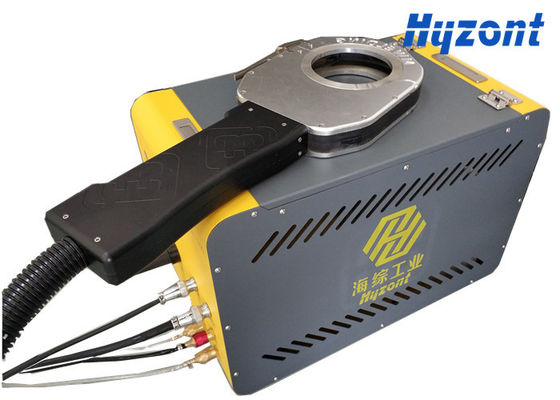

          Orbital Welding Head at Hyzont Welding laboratory



GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry
        Double Flange welding of  Stainless Steel  Elbow



 GTAW / TIG Portable Orbital Welding Machine For Food And Beverage Industry
                 T-joint butt welding of Orbital Welding Machine



Order Information:



Order Code K20080
Packing Flight case
Packing Size 650*400*200mm
Packing Weight 10Kg + 23Kg (Welding Power Source OBT-200)
Delivery Time 3-5 Days after payment



Hyzont CHF-15/30/45 Orbital Welding Machine Youtube Video :
