Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

China Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller supplier

Large Image :  Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

Product Details:

Place of Origin: China
Brand Name: TAYOR
Certification: CE
Model Number: CNCXG-600

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Contact Now
Detailed Product Description
Name: CNC Pipe Profile Plasma Cutting Machine Model: CNCXG-600
Application: CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting Pipe OD: 50-630mm
Wall Thickness: 1-30mm Carbon Steel (Plasma Cutting) Pipe Length: 6000mm
Controller: 5 Axis Window Based CNC Controller Plasma Power Source Model: Hypertherm Powermax125

CNC Pipe Plasma Cutting Machine for Pipe Proflie Automatic Beveling and Cutting



Model: CNCXG600-V





Application:





  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting





Features



  • Multi-axis controlled and free movement to finish pipe end or bevel cut
  • 10” Touch screen controller with appropriative software
  • Off-line programming
  • Compatible with AutoCAD and Tekla
  • Flame and plasma cutting torch for thin and stainless steel tube



Specification

Pipe Diameter Φ50-Φ630mm
Torch Rail length (Pipe length) ≤12000mm
Cutting model Flame
Plasma Cutting Thickness 1-25mm
Plasma model Hypertherm Powermax105
Flame cutting thickness 6-40mm
Photoelectric Height Sensor 0.1 sec response speed
Control System pipe profile cutting software
Data input Torch Screen Data Input
Max Loading capacity 4000Kg
Pipe Chuck 3 Jaws concentric chuck
Flame Max beveling angle ±60°
Plasma Max beveling angle ±45°
Flame cutting speed 50mm/min -800mm/min
Plasma cutting speed 100mm/min-4000mm/min
Moving Error ≤0.2mm /1000mm
Turning Angle Error ≤1° per 180°
Pipe Rotate speed 0-10000mm/min



Detailed Pictures

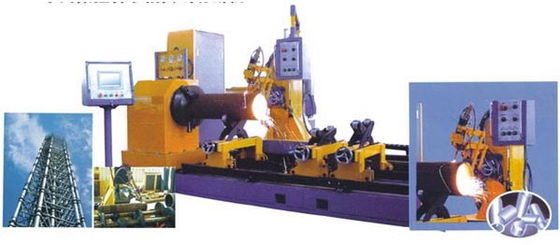

Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

             Profile Cutting Effect of  CNCXG600-V





Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller





Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller



Order information

Order Code CNCXG600-V
Packing Wooden Case and Pallet
Packing Size 2200*5200*2000mm
Packing Weight 5000Kg
