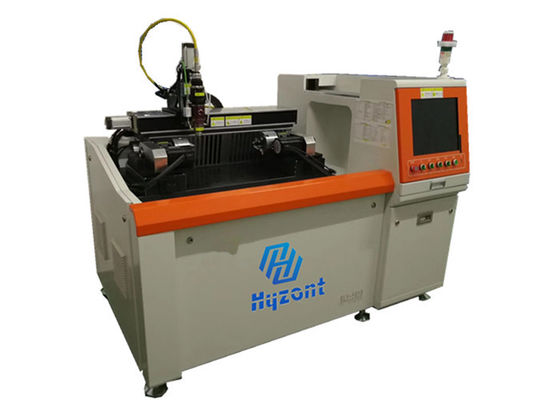

Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller

Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller
Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller

Large Image :  Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller Get Best Price

Product Details:

Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: HL5-1502

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD
Packaging Details: Wooden Case/1 20Gp Container
Delivery Time: 30Days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/month
Detailed Product Description
Name: CNC Fiber Laser Cutting Machine Model: HL5-1502
Brand: Hyzont Cutting Area: OD50mm*550mm
Power Source: 500W/800W/1000W Controller: CyperCut
Cutting Thickness: 3mm Moving Speed: Max 40m/min
Laser Power Source: FEIBO Machine Weight: 400Kg
High Light:

fiber laser cnc machine

,

cnc tube laser cutting machine



Stainless Steel Small tube Fiber Laser Cutting Machine controlled by cypcut CNC controller​



Model: HL5-1502



Application:



           It is suitable for cutting of round pipe and square pipe. With professional laser cutting controller and software, with automatic follow-focus system can fully follow the bending and undulating position of the workpiece during cutting to ensure the precision cutting and quality. Laser-formed parts are burr-free, black-free, and highly consistent in the same product size. Imported fiber laser source and high quality cutting head, high-precision rotary servo motor.







Features



  • Fiber laser electro-optical conversion efficiency is higher than 33%, which greatly saves power consumption during operation, saves operating costs, and achieves the highest production efficiency.
  • Fiber lasers require only electrical energy for operation with minimal operating and maintenance costs.
  • Fiber lasers do not require start-up time, have the advantages of no adjustment, maintenance-free, and high stability, reducing the cost of accessories and maintenance time.
  • Fiber laser cutting offers excellent beam quality, extremely high cutting speed, high stability and low cost of ownership.
  • Fiber laser cutting process eliminates the need for mold opening, toolless tool wear, cost savings, and the ability to quickly develop new products.
  • Fiber laser cutting is flexible and easy to process, and can perform any workpiece with complex structures.
  • Fiber laser cutting process is environmentally friendly, non-toxic, clean and sanitary, and meets national environmental protection requirements.





Specification





Model: HL5-1502
Output Power 400W/500W/800W(Customized)
Cutting Area OD50mm*550mm
Laser Wave 1065nm
Cooling Water Cooling
Max Speed 500W/800W/1000W
Max Thickness 3mm
Min Kerfs 0.1mm
Repeatability ±0.03mm
Controller Cycut
Focusing Automatic
Drive mode Gantry line servo
power consumption ≤3.5kw/≤4kw/≤4.5kw/≤6.5kw
Weight Approx 400KG
Input Power 220V/50HZ/30A
floor space 1900*1150*1300mm









Software features:



  • The software uses high-efficiency CypCut laser cutting system CNC control software, powerful, compatible, compatible with CAD, CoreDRAW 9.0 output DXF format graphics.
  • Easy to operate, draw any two-dimensional graphics on the computer, no need to open the mold, the product can be produced immediately.
  • Powerful graphic display function, which visually shows the cutting effect and detects the cutting path in real time online.
  • Convenient and fast cutting process layout, such as adjustment, error detection, nesting, positioning, oligo, lead, layering, setting parameters, retraction, etc., very user-friendly operation mode.



Detailed Pictures

Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller 0



     Working of High Precision CNC Fiber Laser Cutting Machine





Stainless Steel CNC Fiber Laser Cutting Machine Controlled By Cypcut CNC Controller 1

      Steel Tube  CNC Fiber Laser Cutting Machine
