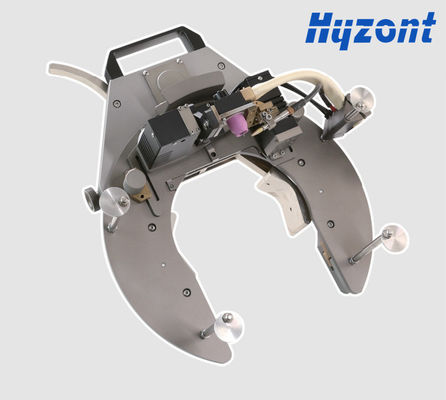

Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V
  • Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V
  • Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V

Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V

Place of Origin China
Brand Name Hyzont/Mwelding
Certification CCC
Model Number MWG-170
Product Details
Name:
Orbital Welding Machine
Model:
MWG-170
Application:
Pipe TIG/GTAW Automatic Welding
Input Power:
380V-440V
Out Put:
400Amp
Type Of Weld:
TIG With Wire Feeding
Pipe OD:
Φ50-168mm
Welding Head Weight:
8Kg
High Light:

pipe welding equipment

,

pipeline welding equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wood Case
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
100Set a Month
Product Description

Automatic Steel Pipe Welding Machine TIG Welding Head with automatic wire feeding

Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V 0



Complete Machine include



MWG-170 Welding Head (OD63-168mm)

MWA-400 Welding Power supply

Auto Wire feeder MWS-170

Tube Type: Carbon Steel Tube, Stainless Steel Tube or titanium alloy Tube
Welded joint: Tube Butt welding
Position of welding: All Position Welding
Welding Technology

1,This equipment is all position tungsten argon arc welding, the welding point on the pipe, welding torch along the pipe welding way rotating a week, including flat welding welding up/down welding and overhead welding four different force different position because of the molten pool in different position, need to have different heat input, need to set the peak current of the different values and the process parameters such as electric arc voltage, current, are available on OBT-315 type integration control power supply man-machine interface to set is complete;

2. Single-sided welding and double-sided molding; the inner parts of stainless steel pipe shall be filled with protective gas (argon or other protective gas), the argon flow rate is 0.5-8L /Min, and the argon protection flow rate of welding gun nozzle is 8-15L/Min.

3. The equipment can be wired or welded by self-fusion. Customers can select and match according to the process requirements of pipe fitting and adopt wire welding

Working Conditions:



  • Tube out of roundness ≤5%;
  • No welding bevel and plain end; perpendicularity±0.5°
  • Tube surface must be flat and smooth, rust-free, burr-free, no paint and scrubbed by ethanol.
  • Two tube welding surface must be complete- joint ;
  • Stainless steel tube must be filled in Argon Gas while one-side welding with back formation.

Features :

  • Automatic all position TIG pipe to pipe welding with/without wire feeding
  • Compact structure design, stable rotation with small rotating inertia
  • Oscillation, multi-passes welding process
  • Suitable for connection of tube to tube, tube to flange, tube to elbow, tube to valve
  • Water circuit cooling, achieving long time working
  • This machine  is modular in design, compact in design and compact in structure.
  • The main components are aluminum structure and stepless adjustable clamp to fix the pipe diameter.
  • Gapless gear transmission structure design with automatic AVC



Specification

Model MWA-400A
Welding source Panasonic YC-400TX
Power source type Inverter
Welding Current 5-315A
Duty Cycle 315A/60%;250A/95% ;244A 100 %
Input Voltage AC380V ± 10 % 50/ 60 Hz
Total Power 8.3KVA
Cooling Build-in Water Cooling System
Display 7" touch screen
Programs Storage 80
Insulation Grade F
Protection Class IP21
Weight 120KG
Dimension 740*520*910
Control Function

Argon Gas Control

Welding Continuous Welding Current and Plus Current Control

Welding Head Rotation Control

Wire Feeding Control

Auto AVC control with on and off function for manual adjustments





Automatic Compact Steel Pipe Welding Machine With Wire Feeding 380V-440V 1
