Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine

China Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine supplier

Large Image :  Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine

Product Details:

Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: TTS-30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Contact Now
Detailed Product Description
Name: Tube To Tube Sheet Welding Machine Model: TTS-30
Tube OD: 12-76mm Welding Cuttent: 315A
Type Of Welding: TIG/GTAW Input Power: 380V
Tube Type: Protruding Tube Or Flush Tube Protective Gas: Argon

Tubular heat exchanger Welding Machine Tube to Tubesheet Welding Machine ​



Model: TTS-30




Application:

       This welding head is a specially designed TIG welding head to making tube to tubesheet welds,which is suitable for carbon steel, stainless steel, mainly for protruded tube, flush tube and indented tube connection with or without wire feeding.

       For welds requiring filler wire addition, an optional wire feeder can be mounted on the weld head. A standard wire spool, mounted directly on the Head, provides precise and positive wire feeding, not possible with floor-mounted feeders.
       These weld Heads bring the productivity and repetitive precision of machine welding to the fabrication and repair of steam generators and heat exchangers.
       This machine is widely applied in

  • Tublar Heat Exchanger tube welding
  • Boiler Tube to Tube Sheet Welding
  • Protruding tube Welding
  • Flus Tube Welding



Features

  • Expandable pneumatic mandrel for easy positioning
  • High precision with fast and accurate performance, suitable for small heat exchanger
  • Auto AVC control with on and off function for manual adjustments
  • Water cooled TIG weld head, easy to change or adjust Tungsten
  • Integrated wire feed for recessed, protuded or flush tube ends
  • Buttons on handle for easy operation
  • Uses localized guide for self-centering of welds 19-76mm OD
  • Recommended power srouce OBT-315





Specification





ModelTTS-30
MaterialCarbon steel, Stainless Steel
Type of ConnectionProtruding tube or Flush Tube
Welding ProcessTIG/GTAW
Tube OD(mm)19-76
Welding Torch Angle0-30
Tungsten OD(mm)1.6-2.4
Welding Wire Dia(mm)Φ0.8mm/Φ1.0mm
Max wire feeding speed2200mm/min
Swing WeldingYes
Rotating360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm)0.37-5.58 rpm
Protective GasArgon
CoolingWater
Cable Length6m
Main Dimension(mm)
Weight(kg)9kg





Power Source Specification




ModelOBT-315
Welding sourcePanasonic YC-315TX
Power source typeInverter
Welding Current5-315A
Duty Cycle315A/60%;250A/95% ;244A 100 %
Input VoltageAC380V ± 10 % 50/ 60 Hz
Total Power8.3KVA
CoolingBuild-in Water Cooling System
Display7" touch screen
Programs Storage80
Insulation GradeF
Protection ClassIP21
Weight120KG
Dimension740*520*910



Detailed Pictures

Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine

           Protruding tube to Tubesheet Welding Machine

Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine

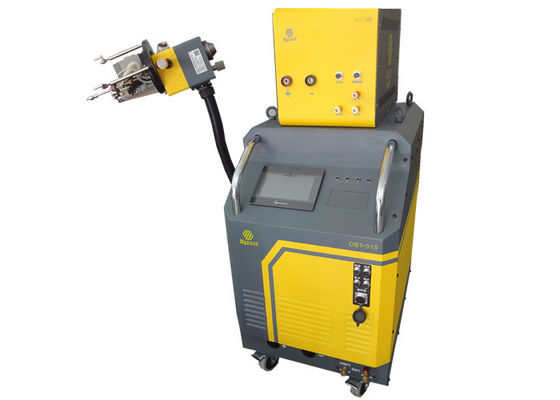

 TTS-30 TIG welding Head of  Tube to Tubesheet Welding Machine

Fast Carbon Steel Tube Sheet Welding / Accurate Tube Welding Machine
  OBT-315 TIG Welding Source for Tube to Tube Sheet Welding Machine



Order information

Order CodeK-31580-P
PackingFlight case
Packing Size550*500*400mm
Packing Weight15Kg + 130Kg (Welding Power Source OBT-315)
Delivery Time15 Days after payment





Hyzont TTP-30 Tube to tubesheet Welding Machine Youtube Video Link:



https://www.youtube.com/watch?v=Zy2-DhXAMAc
