5 Axis Controlled CNC Tube Cutter , Carbon Steel CNC Plasma Pipe Cutter
  • 5 Axis Controlled CNC Tube Cutter , Carbon Steel CNC Plasma Pipe Cutter

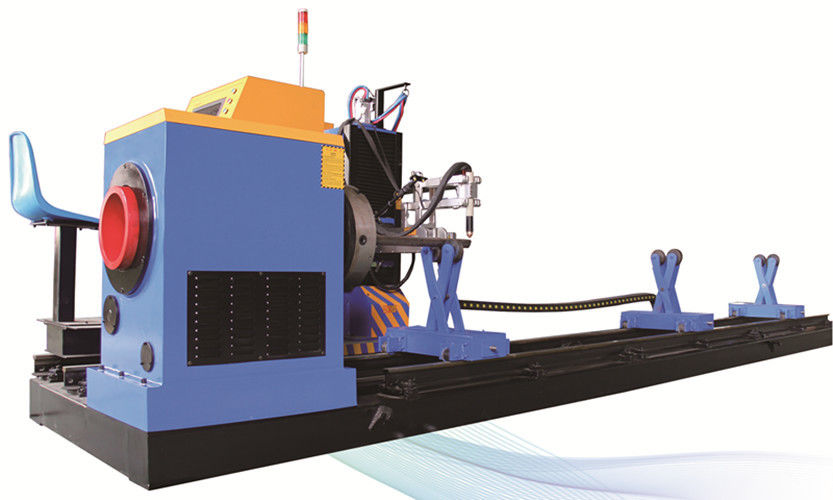

5 Axis Controlled CNC Tube Cutter , Carbon Steel CNC Plasma Pipe Cutter

Place of Origin China
Brand Name TAYOR
Certification CE
Model Number CNCXG600-V
Product Details
Name:
CNC Pipe Profile Plasma Cutting Machine
Model:
CNCXG600-V
Application:
CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting
Pipe OD:
50-630mm
Wall Thickness:
1-30mm Carbon Steel (Plasma Cutting)
Pipe Length:
Max 120000
Controller:
5 Axis Window Based CNC Controller
Plasma Power Source Model:
Hypertherm Powermax105
High Light:

cnc pipe cutter

,

cnc laser tube cutter

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
60 days after payment
Payment Terms
L/C, T/T
Supply Ability
30 Set a Month
Product Description



Pipe Profile Cutting Machine 5 axis CNC controlled with Hypertherm Powermax105 Plasma Source ​





Model: CNCXG600-V







Application:



    This is a machine widely applied in

  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting and Truss building



     It is a multi-axis controlled  machine able to automatic move and cut round pipe upto OD 630mm.  Equipted with USA hypertherm Powermax105 Plasma source ensured good hole cutting and pipe end cutting and all type of welding bevel could be cut by it .​

     Flame and Plasma torch are avaiable to use for different thickness pipe and different condition.





Features

  • Canada professional pipe optimization CNC system , with AutoCAD version of the engineering design can be directly generated G code.
  • Support tube splitting / image / left and right replacement and other pipe optimization function.
  • Support TEKLA software seamless link, generate CNC processing code.
  • Adopt the shaft lifting structure, main feature is the center of the chuck is floating adjustable, adopt tube not move while chuck floating method, highly improve large diameter cutting.
  • Roller body, can automatically transport cutting pipe.



Specification

Pipe Diameter

Φ300-Φ1250mm

Torch Rail length (Pipe length)

≤12000mm

Cutting model

Flame

Plasma Cutting Thickness

1-25mm

Plasma model

Hypertherm maxpro200

Flame cutting thickness

6-40mm

Photoelectric Height Sensor

0.1 sec response speed

Control System

pipe profile cutting software

Data input

Torch Screen Data Input

Max Loading capacity

10000Kg

Pipe Chuck

3 Jaws concentric chuck

Flame Max beveling angle

±60°

Plasma Max beveling angle

±45°

Flame cutting speed

50mm/min -800mm/min

Plasma cutting speed

100mm/min-4000mm/min

Moving Error

≤0.2mm /1000mm

Turning Angle Error

≤1° per 180°

Pipe Rotate speed

0-10000mm/min



Detailed Pictures

5 Axis Controlled CNC Tube Cutter , Carbon Steel CNC Plasma Pipe Cutter 0

 T-joint with bevel profile cut with CNC pipe profile cutting Machine







5 Axis Controlled CNC Tube Cutter , Carbon Steel CNC Plasma Pipe Cutter 1

                               Above profile can be cut by CNC pipe profile cutting Machine

Order information

Order Code CNCXG600-V
Packing Wooden Case and Pallet
Packing Size N/A
Packing Weight 5000Kg
Delivery Time 30  Days after payment
