OD50 - 630mm CNC Pipe Profile Cutting Machine For Steel Structure Fabricating
  • OD50 - 630mm CNC Pipe Profile Cutting Machine For Steel Structure Fabricating

OD50 - 630mm CNC Pipe Profile Cutting Machine For Steel Structure Fabricating

Place of Origin China
Brand Name TAYOR
Certification CE
Model Number CNCXG-600
Product Details
Name:
CNC Pipe Profile Plasma Cutting Machine
Model:
CNCXG-600
Application:
CNC Pipe Profile Plasma Cutting For Steel Structure Or Pressure Vessel Cutting
Pipe OD:
50-630mm
Wall Thickness:
1-30mm Carbon Steel (Plasma Cutting)
Pipe Length:
6000mm
Controller:
5 Axis Window Based CNC Controller
Plasma Power Source Model:
Hypertherm Powermax125
High Light:

cnc pipe cutter

,

cnc laser tube cutter

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
30 days after payment
Payment Terms
L/C, T/T
Supply Ability
30 Set a Month
Product Description

OD50-630mm CNC Pipe Profile Plasma Cutting Machine for Steel Structure Fabricating





Model: CNCXG600-V





Application:



This machine has been designed as automatic circular tube profile plasma cutting machine to take user more efficient who facing complicated cut job of circular tube truss building .

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting





Features



  • Multi-axis controlled and free movement to finish pipe end or bevel cut
  • 10” Touch screen controller with appropriative software
  • Off-line programming
  • Compatible with AutoCAD and Tekla
  • Flame and plasma cutting torch for thin and stainless steel tube



Specification

Pipe Diameter Φ50-Φ630mm
Torch Rail length (Pipe length) ≤12000mm
Cutting model Flame
Plasma Cutting Thickness 1-25mm
Plasma model Hypertherm Powermax105
Flame cutting thickness 6-40mm
Photoelectric Height Sensor 0.1 sec response speed
Control System pipe profile cutting software
Data input Torch Screen Data Input
Max Loading capacity 4000Kg
Pipe Chuck 3 Jaws concentric chuck
Flame Max beveling angle ±60°
Plasma Max beveling angle ±45°
Flame cutting speed 50mm/min -800mm/min
Plasma cutting speed 100mm/min-4000mm/min
Moving Error ≤0.2mm /1000mm
Turning Angle Error ≤1° per 180°
Pipe Rotate speed 0-10000mm/min



Detailed Pictures

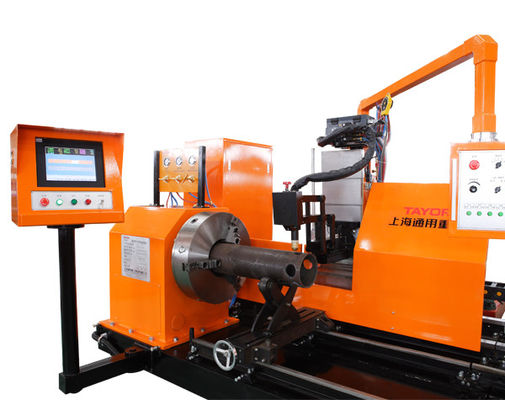

OD50 - 630mm CNC Pipe Profile Cutting Machine For Steel Structure Fabricating 0

             Profile Cutting Effect of  CNCXG600-V











Order information

Order Code CNCXG600-V
Packing Wooden Case and Pallet
Packing Size 2200*5200*2000mm
Packing Weight 5000Kg
Delivery Time 30 Days after payment
