Full Set Pipeline Welding Equipment , SS Pipe Welding Machine OD Rang 50-168mm
  • Full Set Pipeline Welding Equipment , SS Pipe Welding Machine OD Rang 50-168mm
  • Full Set Pipeline Welding Equipment , SS Pipe Welding Machine OD Rang 50-168mm

Full Set Pipeline Welding Equipment , SS Pipe Welding Machine OD Rang 50-168mm

Place of Origin China
Brand Name Hyzont
Certification CCC
Model Number OTH-50
Product Details
Name:
Orbital Welding Machine
Model:
OTH-50
Application:
Pipe TIG/GTAW Automatic Welding
Input Power:
380V-440V
Out Put:
MAX315 A
Type Of Weld:
TIG With Wire Feeding
Pipe OD:
Φ50-168mm
Welding Head Weight:
8Kg
High Light:

pipe welding equipment

,

pipeline welding equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wood Case
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
100Set a Month
Product Description

Full Set of Automatic TIG Steel Tube Pipe Welding Machine Pipe OD Rang 50-168mm

Application:

    Tube dia Range:Φ50-168mm

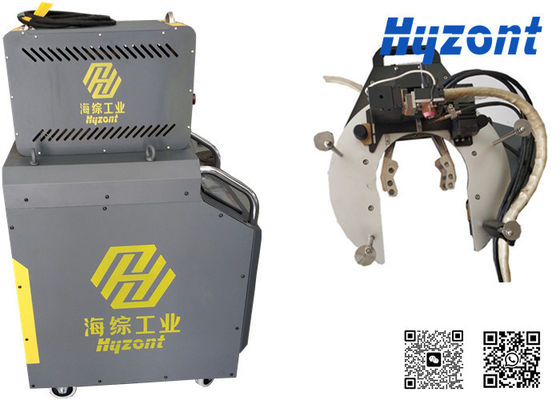

    This Automatic Tube Welding Machine includes OBT-315 TIG welding power source  and OTH-130 Open welding head , which is Suitable for medium wall thickness carbon steel, stainless steel material pipe welding. It is designed as a compact structure and easy to use at work site  with good weld surface and fast speed.

Features :

  • Automatic all position TIG pipe to pipe welding with/without wire feeding
  • Compact structure design, stable rotation with small rotating inertia
  • Oscillation, multi-passes welding process
  • Suitable for connection of tube to tube, tube to flange, tube to elbow, tube to valve
  • Water circuit cooling, achieving long time working
  • This machine  is modular in design, compact in design and compact in structure.
  • The main components are aluminum structure and stepless adjustable clamp to fix the pipe diameter.
  • Gapless gear transmission structure design with automatic AVC

Specification

Model MWA-315A
Welding source Panasonic YC-315TX
Power source type Inverter
Welding Current 5-315A
Duty Cycle 315A/60%;250A/95% ;244A 100 %
Input Voltage AC380V ± 10 % 50/ 60 Hz
Total Power 8.3KVA
Cooling Build-in Water Cooling System
Display 7" touch screen
Programs Storage 80
Insulation Grade F
Protection Class IP21
Weight 120KG
Dimension 740*520*910
Control Function

Argon Gas Control

Welding Continuous Welding Current and Plus Current Control

Welding Head Rotation Control

Wire Feeding Control

Auto AVC control with on and off function for manual adjustments





Detailed Pictures



Full Set Pipeline Welding Equipment , SS Pipe Welding Machine OD Rang 50-168mm 0

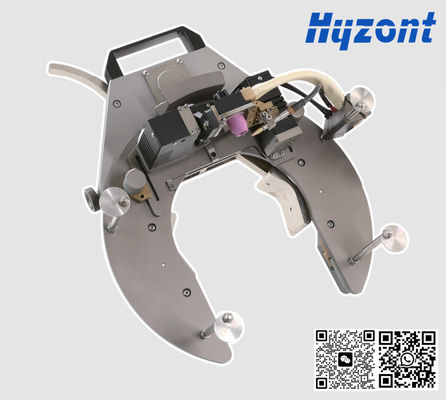

                               Size of  OTH-130 Welding Head
