315A Automatic Tube Welder

1 Set
MOQ
Negotiation
Price
315A Automatic Tube Welder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Tube To Tube Sheet Welding Machine
Model: TTS-30
Tube OD: 12-76mm
Welding Cuttent: 315A
Type Of Welding: TIG/GTAW
Input Power: 380V
Type Of Connection: Rotruding Tube Or Flush Tube
Welding Wire Dia(mm): Φ0.8mm/Φ1.0mm
High Light:

tube welding machine

,

auto welding machine

,

Tube to Tube Sheet Welding Machine 315A

Basic Infomation
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: TTS-30
Payment & Shipping Terms
Packaging Details: Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package
Payment Terms: L/C, T/T
Supply Ability: 30 Set a Month
Product Description

12-76mm Automatic Tube to tubesheet Welding Machine for boiler or heat exchanger



Model: TTS-30





Application:

We supply different models that can cover the size range of 12 to 76 mm OD.

These easy to operate weld heads improve productivity by increasing duty cycle, reducing repair rates and producing welds of consistent quality.

This tube to tubesheet head is designed to make tube-to-tubesheet welds precise and repeatable. These are orbital weld heads optimized for fusion and wire feed for GTAW tube welding applications.

An integral head-mounted feeder is standard.



This machine is widely applied in

  • Tublar Heat Exchanger tube welding
  • Boiler Tube to Tube Sheet Welding
  • Protruding tube Welding
  • Flus Tube Welding



Features

  • All position weld without welding wire feeding
  • Auto AVC control with on and off function for manual adjustments
  • Rugged, reliable tube-to tubesheet weld head suited for high-production applications
  • One-button operation, quick mount and dismount
  • Welding Continuous Welding Current and Plus Current Control




Specification



Model TTS-30
Material Carbon steel, Stainless Steel
Type of Connection Protruding tube or Flush Tube
Welding Process TIG/GTAW
Tube OD(mm) 19-76
Welding Torch Angle 0-30
Tungsten OD(mm) 1.6-2.4
Welding Wire Dia(mm) Φ0.8mm/Φ1.0mm
Max wire feeding speed 2200mm/min
Swing Welding Yes
Rotating 360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm) 0.37-5.58 rpm
Protective Gas Argon
Cooling Water
Cable Length 6m
Main Dimension(mm)
Weight(kg) 9kg





Detailed Pictures

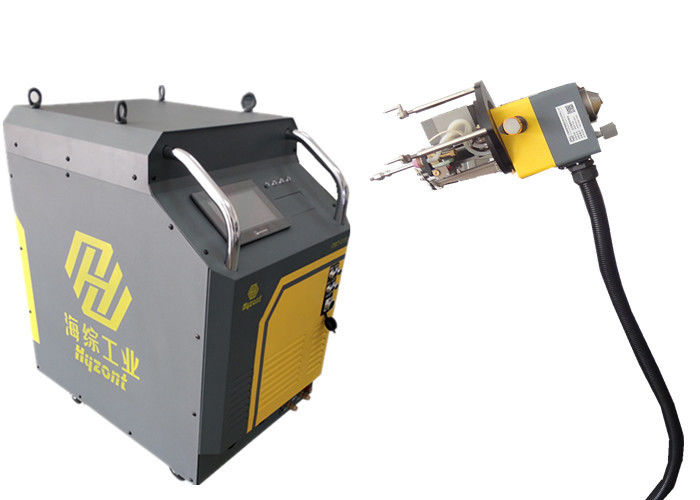

315A Automatic Tube Welder 0







315A Automatic Tube Welder 1

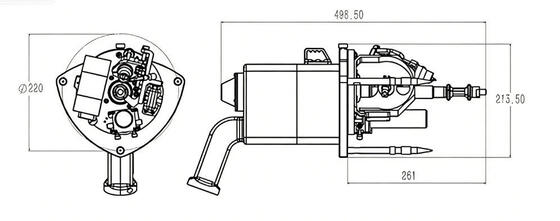

       TTS-30 Tube to Tubesheet Welding Machine Structure







Order information

Order Code K-31580-P
Packing Flight case
Packing Size 550*500*400mm
Packing Weight 15Kg + 130Kg (Welding Power Source OBT-315)
Delivery Time 15 Days after payment









TTP-30 Tube to tubesheet Welding Machine Youtube Video Link:

https://www.youtube.com/watch?v=Zy2-DhXAMAc
